Reductant Injector and Reductant Pressure Line
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

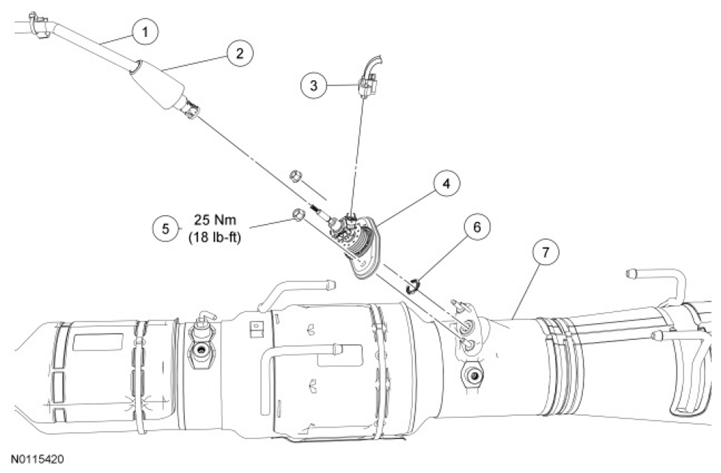

Fig 1: Exploded View Of Reductant Injector And Reductant Pressure Line Components With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | 5J249 | Reductant pressure line |
| 2 | - | Reductant pressure line heat shield (part of 5J249) |
| 3 | - | Reductant injector electrical connector (part of 14406) |
| 4 | 5J281 | Reductant injector |
| 5 | W711402 | Reductant injector nut (2 required) |
| 6 | 5J287 | Reductant injector gasket |
| 7 | 5H270 | Catalyst and particulate filter assembly |
- Refer to the procedures and/or exploded views in this article for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
