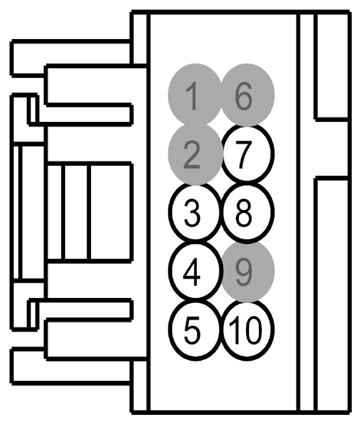

Audio Control Module (ACM) Connector End View (C290C)

Fig 1: Identifying Audio Control Module (ACM) Connector (C290C)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	VMN20 (BN)	26	CTRL MOD. - DVD VIDEO +
4	CMN23 (WH-BU)	22	DISPLAY ENABLE
5	CMN24 (GY-VT)	22	DISPLAY TX
6	*	*	Not Used
7	DMN20 (*)	22	CTRL MOD. - DVD VIDEO
8	RMN20 (WH)	26	CTRL MOD. - DVD VIDEO -
9	*	*	Not Used
10	CMN26 (BU-OG)	22	DISPLAY RX

Available Pigtail Kits

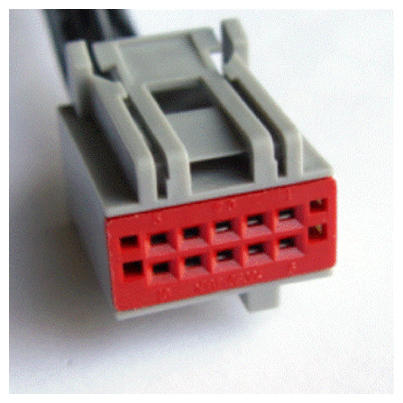

Pigtail Kit Part Number WPT-934	Service Part Number: 3U2Z-14S411-LSB  Gauge: 18  Pin material: Silver  Cavities: 10  Vehicle Uses Lamp - Headlamp Switch Module - Lighting Control Module - Reverse Park Aid (RPA) Module - Seat Memory Radio Switch - Headlamp Switch - Headlamp/Foglamp Switch - Multifunction Switch - Power Window - Driver Switch - Turn Signal

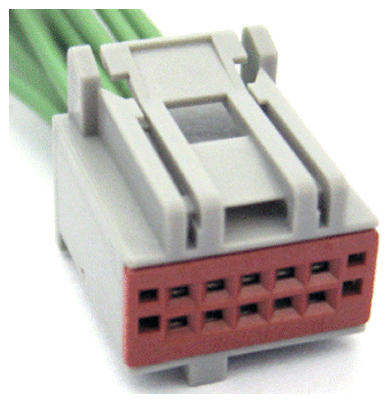

Pigtail Kit Part Number WPT-559	Service Part Number: 3U2Z-14S411-LSA  Gauge: 20  Pin material: Tin  Cavities: 9  Vehicle Uses Module - Reverse Park Aid (RPA) Module - Seat Memory Switch - Heated Seat - RH - Front Switch - Multifunction Switch - Power Window - Driver Switch - Seat (driver) Switch - Seat (passenger)
