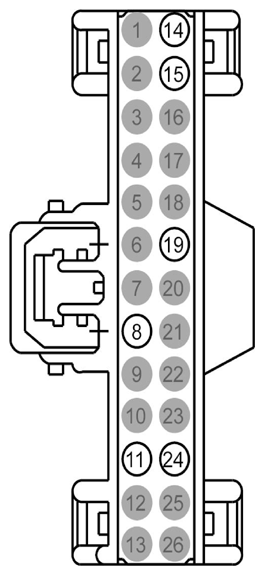

HVAC Module Connector End View (C294B)

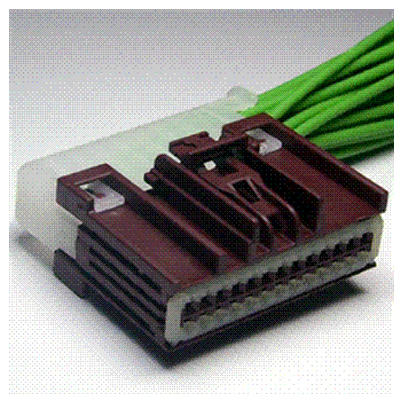

Fig 1: Identifying HVAC Module Connector (C294B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	*	*	Not Used
5	*	*	Not Used
6	*	*	Not Used
7	*	*	Not Used
8	VH416 (VT)	26	SENSOR - SUN LOAD # LEFT
9	*	*	Not Used
10	*	*	Not Used
11	VH417 (YE)	26	SENSOR - SUN LOAD # RIGHT
12	*	*	Not Used
13	*	*	Not Used
14	CH212 (BU)	26	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 1/CLOSE (IF PLUS)
15	CH213 (BN)	26	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 2/OPEN (IF PLUS)
16	*	*	Not Used
17	*	*	Not Used
18	*	*	Not Used
19	VH414 (GN)	26	SENSOR - INCAR TEMP.
20	*	*	Not Used
21	*	*	Not Used
22	*	*	Not Used
23	*	*	Not Used
24	VH441 (BN)	26	SENSOR - DOOR POSITION TEMP. RIGHT
25	*	*	Not Used
26	*	*	Not Used

Available Pigtail Kits
Pigtail Kit Part Number WPT-1291	Service Part Number: CU2Z-14S411-ASA Gauge: 20 Pin material: Silver Cavities: 26 Vehicle Uses Control Head - Electronic Automatic Temperature (EATC) Module - Body Control Module - Electronic Automatic Temperature Control (EATC)
