Vehicle Dynamics Module (VDM) Connector End View (C4396A)

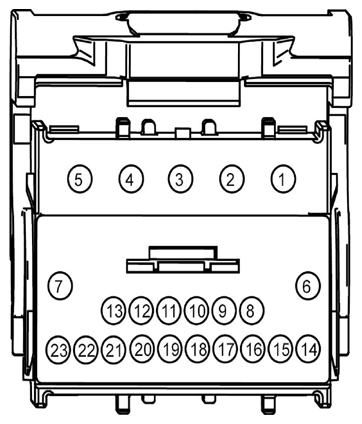

Fig 1: Identifying Vehicle Dynamics Module (VDM) Connector (C4396A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CCD05 (GN-BU)	20	CTRL MOD. - CDC # VALVE DAMPER REAR LEFT +
2	RCD05 (YE-BU)	20	CTRL MOD. - CDC # VALVE DAMPER REAR LEFT -
3	*	*	Not Used
4	RCD06 (BU-BN)	20	CTRL MOD. - CDC # VALVE DAMPER REAR RIGHT -
5	CCD06 (VT-GY)	20	CTRL MOD. - CDC # VALVE DAMPER REAR RIGHT +
6	GD109 (BK)	16	GROUND - ENGINE BLOCK LEFT
7	*	*	Not Used
8	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
9	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
10	*	*	Not Used
11	*	*	Not Used
12	*	*	Not Used
13	*	*	Not Used
14	*	*	Not Used
15	*	*	Not Used
16	*	*	Not Used
17	*	*	Not Used
18	*	*	Not Used
19	*	*	Not Used
20	*	*	Not Used
21	*	*	Not Used
22	*	*	Not Used
23	*	*	Not Used
