Output Shaft Speed (OSS) Sensor: Notes

MATERIAL SPECIFICATIONS

Item Specification
Motorcraft® Dual Clutch Transmission Fluid
XT-11-QDC		 WSS-M2C200-D2

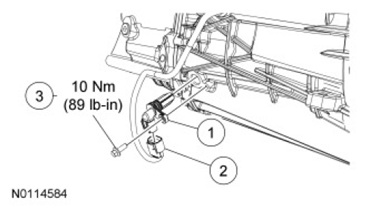

Fig 1: Output Shaft Speed (OSS) Sensor Replacement Components With Torque Specifications
G07488632Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7H103 Output Shaft Speed (OSS) sensor
2 - OSS sensor electrical connector
3 W714875 OSS sensor bolt
