Cruise-Control Module (C-CM): Installation

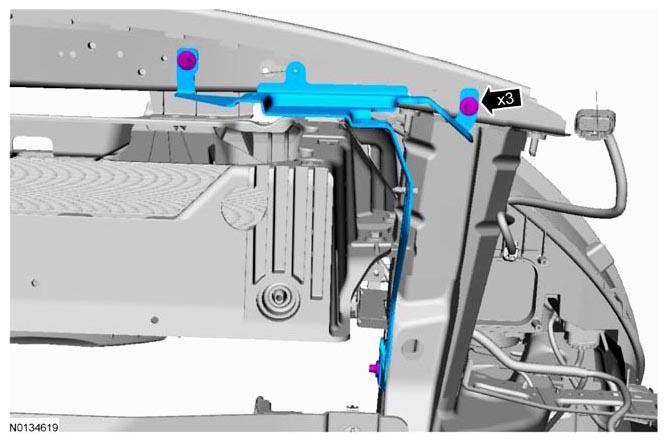

Bracket

1. • Tighten the bolts to 8 Nm (71 lb-in).

   C-CM or bracket

   NOTE: The vertical and horizontal alignment procedures need to be carried out to align the sensor.

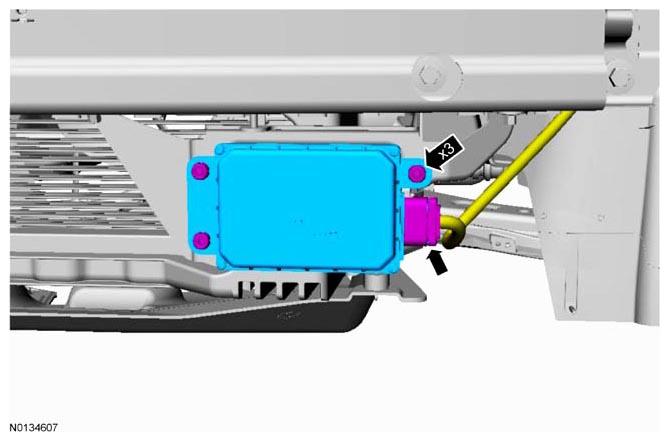

2. NOTE: If one plastic grommet breaks while the C-CM is being installed, a new grommet should be installed.
   NOTE: Firmly apply pressure to the C-CM so that it seats completely in the grommets.
3. Once the C-CM is installed, pull the C-CM to confirm that all 3 ball studs are fully seated in the grommets.
4. Connect the C-CM connector.
5. NOTE: Do not install the C-CM front bumper cover until the alignment procedures are carried out.

   Vertically and horizontally align the C-CM. For additional information, refer to CRUISE CONTROL MODULE (C-CM) (WITH SENSOR) ADJUSTMENT .

6. Install the front bumper cover. For additional information, refer to BUMPERS .
