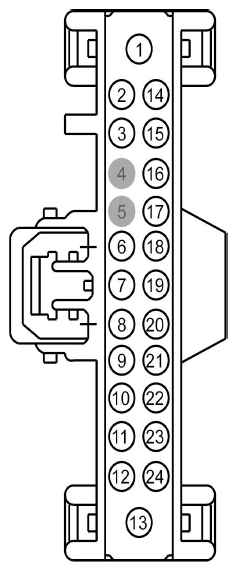

Audio Control Module (ACM) Connector End View (C240A)

Fig 1: Identifying Audio Control Module (ACM) Connector (C240A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP29 (GY-RD)	16	FUSE - 29 OR CIRCUIT BREAKER
2	VME49 (WH)	22	ANTENNA - ELECTRONIC HIDDEN (EHAM) # FM POS
3	CE336 (GN-WH)	26	CTRL MOD. - POWERTRAIN # STARTER MOTOR RELAY ONE TOUCH START (SMRC)
4	*	*	Not Used
5	*	*	Not Used
6	RME46 (WH-GN)	22	JACK - AUDIO # EXT. AUX IN RIGHT (-)
7	SME23 (VT-RD)	22	CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER ENABLE
8	RME51 (WH-BU)	18	CTRL MOD. - AUDIO # CENTER IMAGE AUDIO -
9	RME09 (BN-YE)	18	CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) -
10	RME07 (WH-BN)	18	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) -
10	RME17 (GY)	26	CTRL MOD. - AUDIO # RADIO LEFT -	SONY PREMIUM AUDIO
11	RME10 (WH-OG)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) -
11	RME18 (YE)	26	CTRL MOD. - AUDIO # RADIO RIGHT -	SONY PREMIUM AUDIO
12	RME12 (BN-BU)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) -
13	GD374 (BK-WH)	16	GROUND - TUNNEL (BC3T)
14	VDB13 (BU)	26	CTRL MOD. - MULTIMEDIA CAN BUS HIGH
14	VDB13 (BU-GY)	22	CTRL MOD. - MULTIMEDIA CAN BUS HIGH SYNC GEN 2
15	VDB14 (VT)	26	CTRL MOD. - MULTIMEDIA CAN BUS LOW
15	VDB14 (VT-GY)	22	CTRL MOD. - MULTIMEDIA CAN BUS LOW SYNC GEN 2
16	DME45 (*)	18	JACK - AUDIO # EXT. AUX IN D
17	VME45 (BU)	22	JACK - AUDIO # EXT. AUX IN LEFT (+)
18	VME46 (BU-GN)	22	JACK - AUDIO # EXT. AUX IN RIGHT (+)
19	DME17 (*)	18	CTRL MOD. - AUDIO # RADIO D
20	VME51 (BN-BU)	18	CTRL MOD. - AUDIO # CENTER IMAGE AUDIO +
21	VME09 (WH-GN)	18	CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) +
22	VME07 (WH)	18	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) +	WITH BASE/PREMIUM AUDIO
22	VME17 (VT-GY)	26	CTRL MOD. - AUDIO # RADIO LEFT +
23	VME10 (WH-VT)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) +	WITH BASE/PREMIUM AUDIO
23	VME18 (VT)	26	CTRL MOD. - AUDIO # RADIO RIGHT +
24	VME12 (BN-WH)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) +
