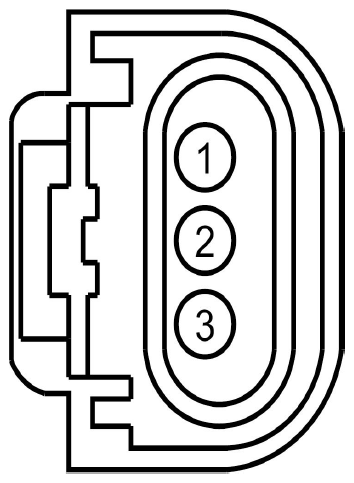

Generator Current Sensor Connector And View (C1645)

Fig 1: Identifying Generator Current Sensor Connector (C1645)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LE424 (YE-GN)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (VREV)
2	RE407 (YE-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) (ATT)
3	VDC61 (VT-GN)	20	SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR

Available Pigtail Kits
Pigtail Kit Part Number WPT-1144	Service Part Number: BU2Z-14S411-EA  Gauge: 16  Pin material: Tin (greased)  Cavities: 3  Vehicle Uses Sensor - Battery Current Sensor - Fuel Tank Pressure Transducer
