Generic Function Module (GFM) Connector And View (C2464)

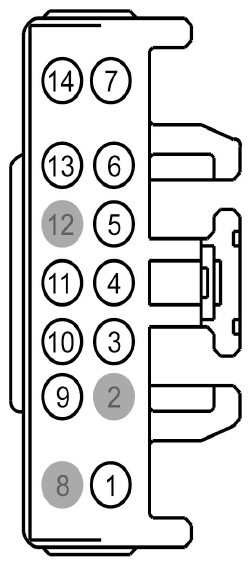

Fig 1: Identifying Generic Function Module (GFM) Connector (C2464)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBP42 (GN)	22	FUSE - 42 OR CIRCUIT BREAKER
2	*	*	Not Used
3	CAP14 (GY-BN)	22	POLICE - BUTTON FUNCTION 1
4	CAP18 (GN-OG)	22	POLICE - SWITCH 4-FUNCTION CONTROL AUX1
5	CAP15 (WH-VT)	22	POLICE - BUTTON FUNCTION 2
6	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
7	RAP18 (BN-BU)	22	POLICE - SWITCH 4-FUNCTION CONTROL
8	*	*	Not Used
9	CAP16 (GN-BN)	22	POLICE - BUTTON FUNCTION 3
10	CAP19 (GY-VT)	22	POLICE - SWITCH 4-FUNCTION CONTROL AUX2
11	CAP17 (YE-GY)	22	POLICE - BUTTON FUNCTION 4
12	*	*	Not Used
13	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
14	GD374 (BK-WH)	20	GROUND - TUNNEL (BC3T)

Available Pigtail Kits

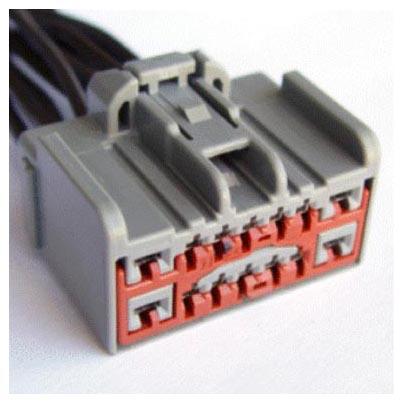

Pigtail Kit Part Number WPT-741	Service Part Number: 3U2Z-14S411-BJAA  Gauge: 12 16  Pin material: Tin  Cavities: 14  Vehicle Uses Cigar Lighter Motor - Heater/AC Blower (Front)

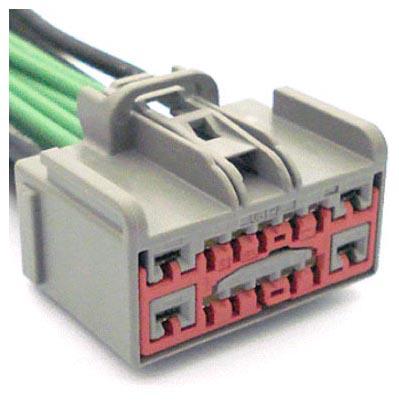

Pigtail Kit Part Number WPT-955	Service Part Number: 3U2Z-14S411-BJAC  Gauge: 12 14 16  Pin material: Tin & Silver  Cavities: 14  Vehicle Uses Connector - Inline
