In-Vehicle Temperature/Humidity Sensor Connector And View (C2247)

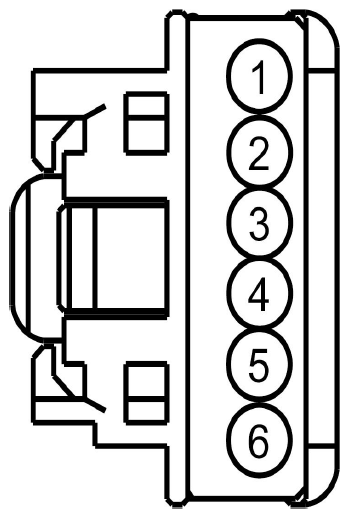

Fig 1: Identifying In-Vehicle Temperature/Humidity Sensor Connector (C2247)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD374 (BK-WH)	22	GROUND - TUNNEL (BC3T)
2	VH414 (GN-BU)	26	SENSOR - INCAR TEMP.
3	LH111 (BN-WH)	22	CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS
4	VH413 (WH-BU)	26	SENSOR - HUMIDITY
5	RH111 (GY-BU)	22	CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS
6	CBP35 (YE-GY)	22	FUSE - 35 OR CIRCUIT BREAKER

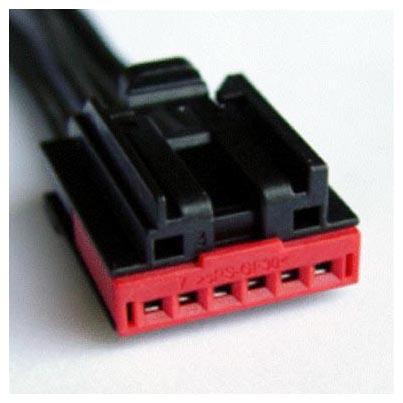

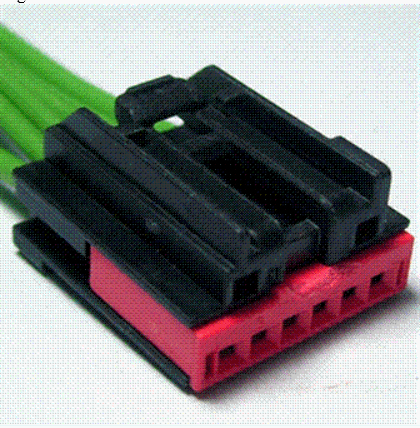

Available Pigtail Kits
Pigtail Kit Part Number WPT-1242	Service Part Number: 3U2Z-14S411-MJB  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Indicator - Passenger Airbag Deactivation (PADI) Sensor - EATC In Car Temperature Switch - Multifunction
Pigtail Kit Part Number WPT-440	Service Part Number: 3U2Z-14S411-MJA  Gauge: 20  Pin material: Tin  Cavities: 6  Vehicle Uses Switch - Multifunction (Turn)
