Lighting/Siren Control Module Connector And View (C4808B)

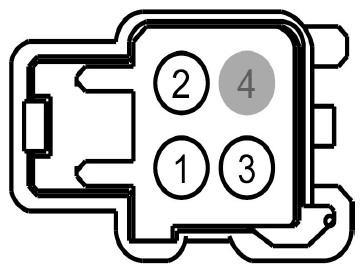

Fig 1: Identifying Lighting/Siren Control Module Connector (C4808B)
G09131473Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 CAP07 (YE) 18 SIREN - POLICE +
2 RAP07 (BU-WH) 18 SIREN - POLICE -
3 DAP07 (*) 18 TBD
4 * * Not Used
Available Pigtail Kits
Pigtail Kit Part Number WPT-1076

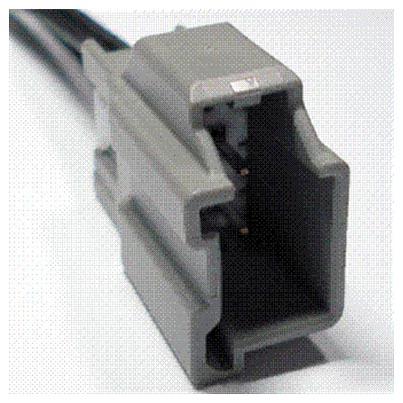

G09131474
Service Part Number: 3U2Z-14S411-BUB
Gauge: 14
Pin material: Tin (greased)
Cavities:
Vehicle Uses
  • Connector - Inline
  • Element - Heated Seat
  • Lamp - Ash Tray
  • Lamp - Courtesy - Footwell
  • Module - Remote Keyless Entry
  • Motor - Heater/AC Blower (Auxiliary)
  • Radio - Amplifier
  • Switch - Convertable Top
