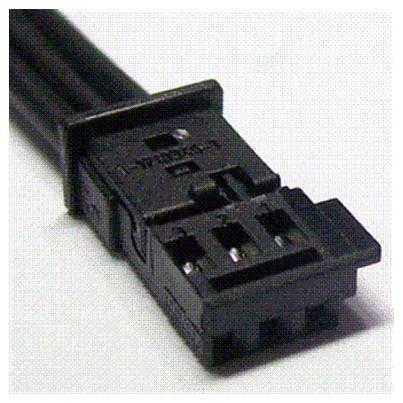

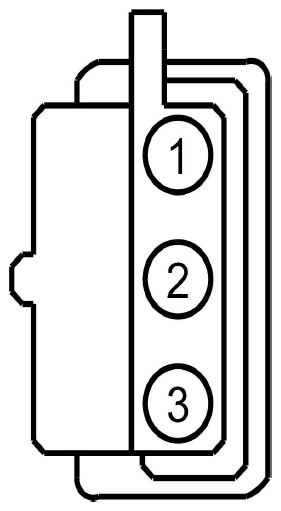

Rain Sensor Module Connector End View (C914)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBB45 (YE) | * | FUSE - 45 OR CIRCUIT BREAKER | |
| 2 | VDN05 (YE-GY) | * | CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE 1 | |
| 3 | GD233 (BK) | * | GROUND - COWL SIDE/PILLAR A LEFT |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1096 | Service Part Number: AU2Z-14S411-ZA Gauge: 18 Pin material: Tin (greased) Cavities: 3 Vehicle Uses
|
