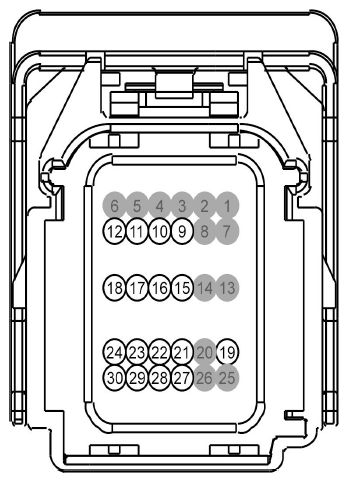

| 1 |
* |
* |
Not Used |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
* |
* |
Not Used |
|
| 4 |
* |
* |
Not Used |
|
| 5 |
* |
* |
Not Used |
|
| 6 |
* |
* |
Not Used |
|
| 7 |
* |
* |
Not Used |
|
| 8 |
* |
* |
Not Used |
|
| 9 |
RR144 (VT-GN) |
20 |
CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING - |
|
| 10 |
CR144 (GY-OG) |
20 |
CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING + |
|
| 11 |
CR168 (WH-GN) |
20 |
CTRL MOD. - PYROTECHNIC STEERING COLUMN + |
|
| 12 |
RR168 (BU-WH) |
20 |
CTRL MOD. - PYROTECHNIC STEERING COLUMN - |
|
| 13 |
* |
* |
Not Used |
|
| 14 |
* |
* |
Not Used |
|
| 15 |
RR130 (GN-BU) |
20 |
CTRL MOD. - SENSOR IMPACT FRONT RH |
|
| 16 |
VR214 (WH-BU) |
20 |
SENSOR - IMPACT FRONT RH |
|
| 17 |
VR213 (VT-GN) |
20 |
SENSOR - IMPACT FRONT LH |
|
| 18 |
RR129 (YE-GY) |
20 |
CTRL MOD. - SENSOR IMPACT FRONT LH |
|
| 19 |
CBP41 (BU) |
22 |
FUSE - 41 OR CIRCUIT BREAKER |
|
| 20 |
* |
* |
Not Used |
|
| 21 |
RR102 (WH) |
20 |
CTRL MOD. - AIR BAG DRIVER 2 - |
|
| 22 |
CR102 (BU) |
20 |
CTRL MOD. - AIR BAG DRIVER 2 + |
|
| 23 |
CR104 (YE-GY) |
20 |
CTRL MOD. - AIR BAG FRONT PASSENGER 2 + |
|
| 24 |
RR104 (WH-BU) |
20 |
CTRL MOD. - AIR BAG FRONT PASSENGER 2 - |
|
| 25 |
* |
* |
Not Used |
|
| 26 |
* |
* |
Not Used |
|
| 27 |
RR103 (VT-GN) |
20 |
CTRL MOD. - AIR BAG FRONT PASSENGER 1 - |
|
| 28 |
CR103 (GY-BU) |
20 |
CTRL MOD. - AIR BAG FRONT PASSENGER 1 + |
|
| 29 |
CR101 (VT-BN) |
20 |
CTRL MOD. - AIR BAG DRIVER 1+ |
|
| 30 |
RR101 (YE-GN) |
20 |
CTRL MOD. - AIR BAG DRIVER 1 - |
|
