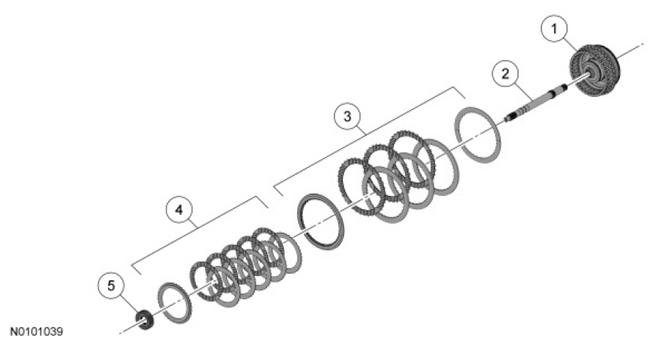

Input Shaft Exploded View
WARNING: This page is about a different variant/trim than selected.
| Item |
Part Number |
Description |
| 1 |
7G384 |
Direct (3, 5, R)/O/D (4, 5, 6) clutch hub |
| 2 |
7F213 |
Input shaft |
| 3 |
7B164 |
Direct (3, 5, R) clutch |
| 4 |
7B164 |
O/D (4, 5, 6) clutch |
| 5 |
7D491 |
Center planetary sun gear |
