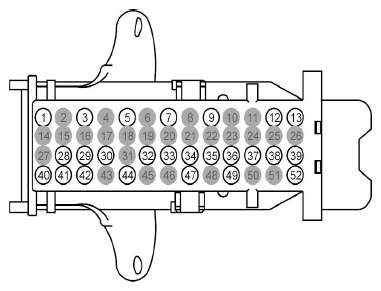

| 1 |
SBP09 (RD) |
22 |
FUSE - 9 OR CIRCUIT BREAKER |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
CBP41 (BU) |
22 |
FUSE - 41 OR CIRCUIT BREAKER |
|
| 4 |
* |
* |
Not Used |
|
| 5 |
CBP42 (GN) |
22 |
FUSE - 42 OR CIRCUIT BREAKER |
|
| 6 |
* |
* |
Not Used |
|
| 7 |
CBP35 (YE-GY) |
22 |
FUSE - 35 OR CIRCUIT BREAKER |
|
| 8 |
* |
* |
Not Used |
|
| 9 |
CBP36 (BU-BN) |
18 |
FUSE - 36 OR CIRCUIT BREAKER |
|
| 10 |
* |
* |
Not Used |
|
| 11 |
* |
* |
Not Used |
|
| 12 |
SBP26 (YE-RD) |
20 |
FUSE - 26 OR CIRCUIT BREAKER |
|
| 12 |
SBP26 (YE-RD) |
26 |
FUSE - 26 OR CIRCUIT BREAKER |
|
| 13 |
CBP38 (GY-BU) |
22 |
FUSE - 38 OR CIRCUIT BREAKER |
|
| 14 |
* |
* |
Not Used |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
* |
* |
Not Used |
|
| 17 |
* |
* |
Not Used |
|
| 18 |
* |
* |
Not Used |
|
| 19 |
* |
* |
Not Used |
|
| 20 |
* |
* |
Not Used |
|
| 21 |
* |
* |
Not Used |
|
| 22 |
* |
* |
Not Used |
|
| 23 |
* |
* |
Not Used |
|
| 24 |
* |
* |
Not Used |
|
| 25 |
* |
* |
Not Used |
|
| 26 |
* |
* |
Not Used |
|
| 27 |
* |
* |
Not Used |
|
| 28 |
CCB08 (VT-WH) |
22 |
SWITCH - BRAKE PEDAL POSITION (BPP) |
|
| 29 |
CDC34 (WH-OG) |
20 |
SWITCH - IGNITION # RUN; START |
|
| 30 |
VLF14 (BU-BN) |
26 |
SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) + |
|
| 31 |
* |
* |
Not Used |
|
| 32 |
CLS32 (BN-YE) |
22 |
SWITCH - HAZARD |
|
| 33 |
CRH04 (VT-GN) |
22 |
CTRL MOD. - RELAY HORN |
|
| 34 |
CDC30 (BU-GY) |
22 |
SWITCH - IGNITION # KEY IN |
|
| 35 |
CDC33 (VT-GN) |
22 |
SWITCH - IGNITION # RUN; ACCESSORY |
|
| 36 |
VRT23 (VT-GY) |
26 |
TRANSCEIVER - PASSIVE ANTI THEFT (IMMOBILIZER) # RX DATA (RX_IN) |
|
| 37 |
VRT24 (YE-OG) |
26 |
TRANSCEIVER - PASSIVE ANTI THEFT (IMMOBILIZER) # TX CNTRL |
|
| 38 |
VDB06 (GY) |
26 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
|
| 39 |
VDB07 (VT) |
26 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
|
| 40 |
VLN04 (VT-GY) |
22 |
CTRL MOD. - IP/SWITCH ILLUMINATION |
|
| 41 |
CDC35 (BU-WH) |
22 |
SWITCH - IGNITION # START |
|
| 42 |
CPK36 (VT-BN) |
22 |
CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED |
|
| 43 |
* |
* |
Not Used |
|
| 44 |
CPK35 (YE-OG) |
26 |
CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 + |
|
| 45 |
* |
* |
Not Used |
|
| 46 |
* |
* |
Not Used |
|
| 47 |
CDC35 (BU-WH) |
22 |
SWITCH - IGNITION # START |
w/out IA |
| 48 |
* |
* |
Not Used |
|
| 49 |
CET53 (BU-OG) |
22 |
CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK |
|
| 50 |
* |
* |
Not Used |
|
| 51 |
* |
* |
Not Used |
|
| 52 |
VDN01 (BU-WH) |
26 |
CTRL MOD. - LIN BUS # SPDJB 1 |
|
