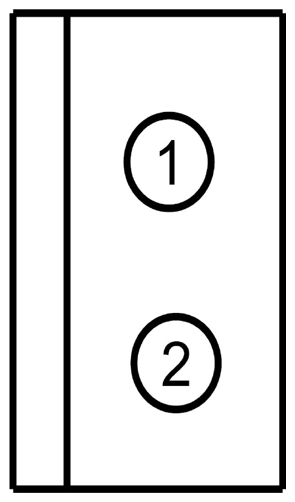

Climate Control Assembly Connector End View (C2892)

Fig 1: Identifying Climate Control Assembly Connector (C2892)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	31-LH27 (BK)	22	HEATER PANEL~ILLUM. ~LAMP, GROUND POWER RETURN
2	29S-LH27 (OG-GN)	22	HEATER PANEL~ILLUM. ~LAMP, SWITCHED BATTERY VOLTAGE, SECONDARY FUSED HOT AT ALL TIMES

Available Pigtail Kits

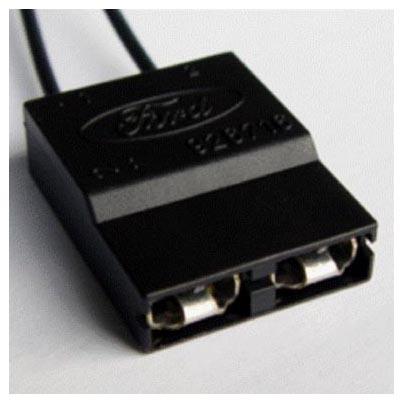

Pigtail Kit Part Number WPT-790	Service Part Number: 3U2Z-14S411-DUAA  Gauge: 22  Pin material: Tin  Cavities: 2  Vehicle Uses Lamp - Instrument

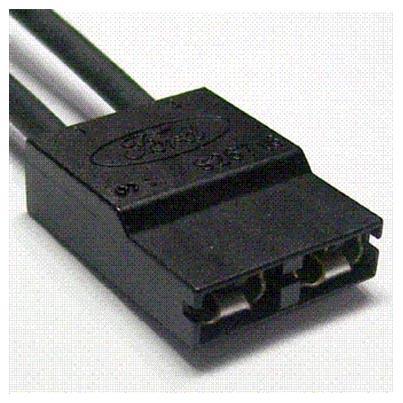

Pigtail Kit Part Number WPT-1137	Service Part Number: 3U2Z-14S411-DUAB  Gauge: 14  Pin material: Tin  Cavities: 2  Vehicle Uses Control Head - Manual Climate Lamp - Instrument
