Electronic Throttle Control (Etc) Module Connector End View (C1189)

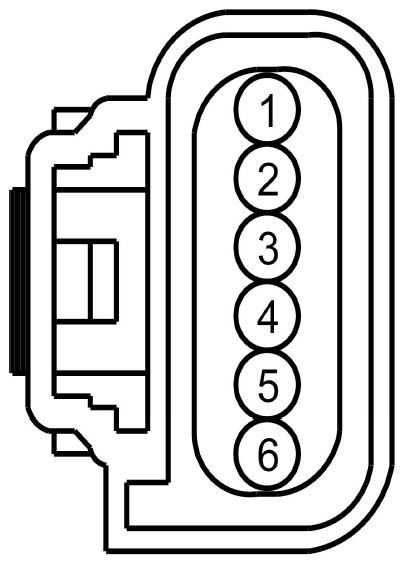

Fig 1: Identifying Electronic Throttle Control Module Connector (C1189)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE818 (BN)	20	SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1)
2	RE134 (BU-OG)	20	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN)
3	LE134 (YE)	20	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF)
4	VE819 (GN-VT)	20	SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2)
5	CE412 (YE-VT)	20	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+)
6	CE426 (BU-GN)	20	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-)

Available Pigtail Kits

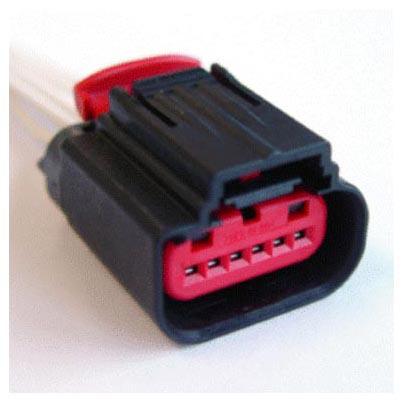

Pigtail Kit Part Number WPT-795	Service Part Number: 3U2Z-14S411-FJAA  Gauge: 18  Pin material: Gold  Cavities: 6  Vehicle Uses Sensor - Air Suspension Sensor - Coolant Level

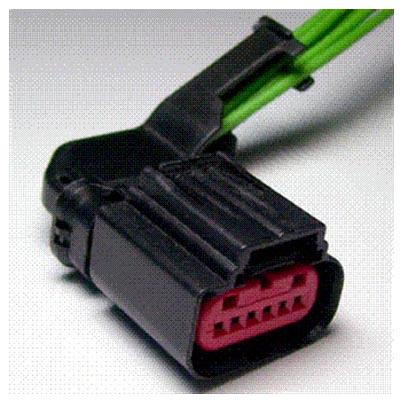

Pigtail Kit Part Number WPT-1023	Service Part Number: 3U2Z-14S411-FJAB  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Control - Electronic Throttle Sensor - Mass Air Flow Sensor - Throttle Position

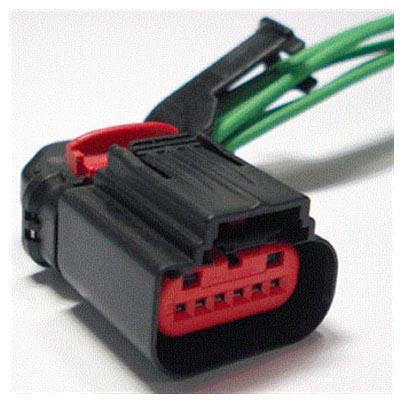

Pigtail Kit Part Number WPT-1241	Service Part Number: 3U2Z-14S411-FJAC  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Control - Electronic Throttle Sensor - Mass Air Flow
