Generic Electronic Module (Gem) Connector End View (C201D)

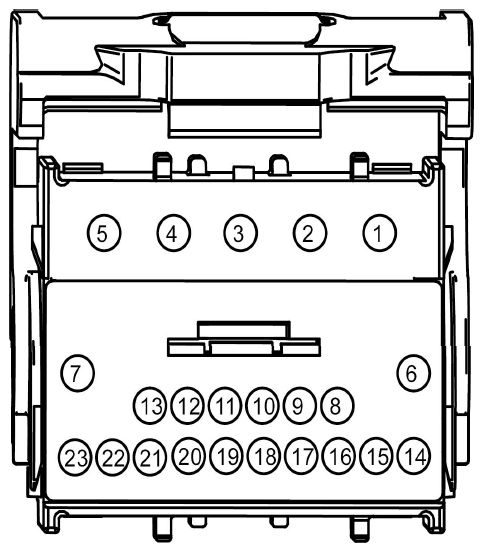

Fig 1: Identifying Generic Electronic Module Connector (C201D)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	33-AA59 (YE-BK)	16	DOOR LATCH ~UNIT *LOCK/UNLOCK, SWITCHED BETWEEN: BATTERY VOLTAGE OR GROUND
2	29-AA17 (OG-WH)	16	DOOR LOCK ~MODULE, BATTERY VOLTAGE, SECONDARY FUSED HOT AT ALL TIMES
3	31-DK20 (BK)	16	GENERIC~ELECTRONIC ~MODULE, GROUND POWER RETURN
4	32-AA59 (WH-BK)	16	DOOR LATCH ~UNIT *LOCK/UNLOCK, SWITCHED BETWEEN: BATTERY VOLTAGE OR GROUND
5	*	*	Not Used
6	29-LC7 (OG-BU)	22	RIGHT REAR~FOOTWELL ~LAMP, BATTERY VOLTAGE, SECONDARY FUSED HOT AT ALL TIMES
6	29-LC7 (OG-BU)	20	FRONT~DOME ~LAMP, BATTERY VOLTAGE, SECONDARY FUSED HOT AT ALL TIMES
7	*	*	Not Used
8	*	*	Not Used
9	*	*	Not Used
10	*	*	Not Used
11	*	*	Not Used
12	*	*	Not Used
13	*	*	Not Used
14	*	*	Not Used
15	*	*	Not Used
16	*	*	Not Used
17	*	*	Not Used
18	*	*	Not Used
19	*	*	Not Used
20	*	*	Not Used
21	*	*	Not Used
22	*	*	Not Used
23	*	*	Not Used
