Interior/Map Lamps Assembly, Front Connector End View (C931A)

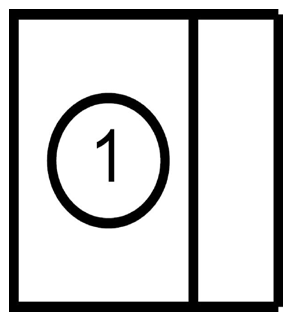

Fig 1: Identifying Interior/Map Lamps Assembly, Front Connector (C931A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	29-LC7 (OG-BU)	20	FRONT~DOME ~LAMP, BATTERY VOLTAGE, SECONDARY FUSED HOT AT ALL TIMES

Available Pigtail Kits

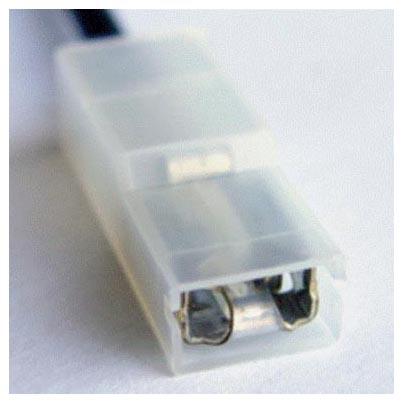

Pigtail Kit Part Number WPT-1017	Service Part Number: 3U2Z-14S411-NYB  Gauge: 14  Pin material: Tin  Cavities: 1  Vehicle Uses Horn Lamp - Courtesy - Reading (Rear) Lamp - Dome Lamp - Storage Compartment - Cargo Terminal - Rear Window Defroster Grid

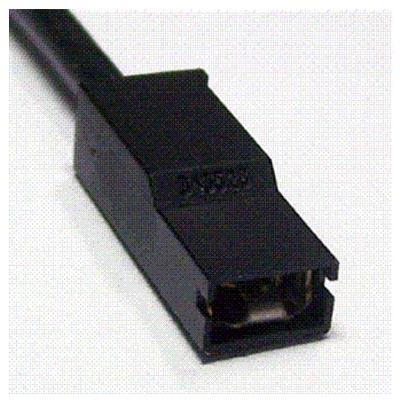

Pigtail Kit Part Number WPT-461	Service Part Number: 3U2Z-14S411-NYA  Gauge: 12  Pin material: Tin  Cavities: 1  Vehicle Uses Lamp - Courtesy - Reading (Rear)
