Interior/Map Lamps Assembly, Front Connector End View (C931B)

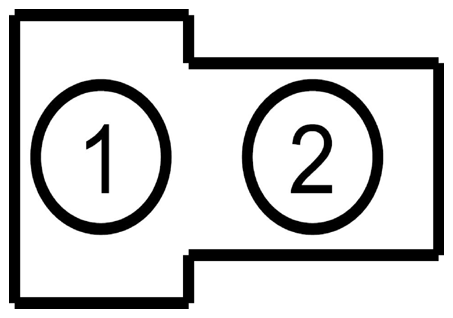

Fig 1: Identifying Interior/Map Lamps Assembly, Front Connector (C931B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	31S-LC7 (BK-BU)	22	FRONT~DOME ~LAMP, SWITCHED GROUND POWER RETURN
2	31-LC7 (BK)	20	FRONT~DOME ~LAMP, GROUND POWER RETURN

Available Pigtail Kits

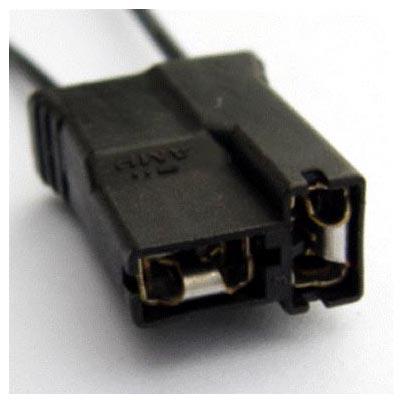

Pigtail Kit Part Number WPT-719	Service Part Number: 3U2Z-14S411-EPAA  Gauge: 18  Pin material: Tin  Cavities: 2  Vehicle Uses Instrument Cluster Lamp - Park/Turn/Stop/Reverse - Inline (Male) Lamp - PRNDL Indicator

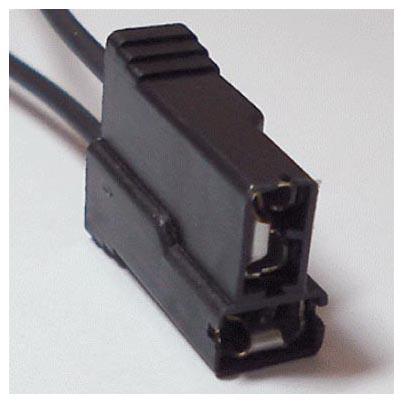

Pigtail Kit Part Number WPT-969	Service Part Number: 3U2Z-14S411-EPAB  Gauge: 16  Pin material: Tin  Cavities: 2  Vehicle Uses Lamp - Courtesy - Reading (Rear) Lamp - Dome Lamp - License Lamp - Storage Compartment - Trunk Speaker - Door (front)
