Interior/Map Lamps Assembly, Front Connector End View (C931C)

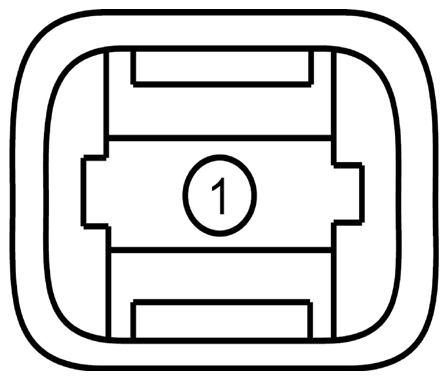

Fig 1: Identifying Interior/Map Lamps Assembly, Front Connector (C931C)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Circuit Function
Qualifier
1
31S-LB25 (BK-BU)
20
LUGGAGE~COMPARTMENT ~LAMP, SWITCHED GROUND POWER RETURN
1
31S-LB25 (BK-BU)
20
LUGGAGE~COMPARTMENT ~LAMP, SWITCHED GROUND POWER RETURN
