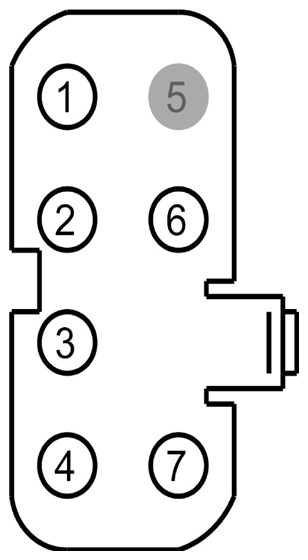

Master Window Control Switch Connector End View (C3293A)

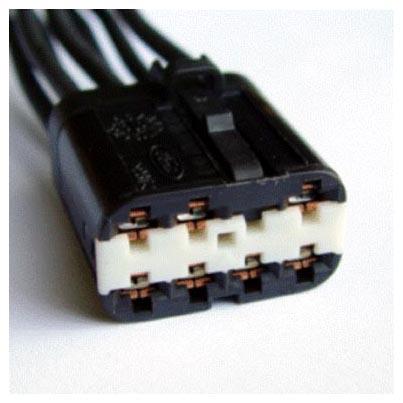

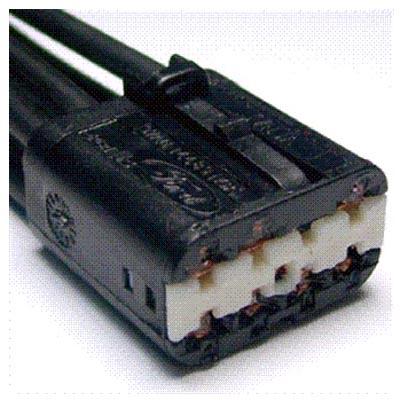

Fig 1: Identifying Master Window Control Switch Connector (C3293A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	32-AJ22 (WH-BK)	14	POWER~WINDOW ~RELAY, SWITCHED BETWEEN: BATTERY VOLTAGE, GROUND OR OPEN CIRCUIT.
2	15-AJ7 (GN-BU)	12	DRV.SIDE FRONT~WINDOW ADJUST. ~SWITCH, BATTERY VOLTAGE, OVERLOAD PROTECTED HOT ONLY IN START AND RUN
3	31-AJ7 (BK)	12	DRV.SIDE FRONT~WINDOW ADJUST. ~SWITCH, GROUND POWER RETURN
4	31-AJ7 (BK)	12	DRV.SIDE FRONT~WINDOW ADJUST. ~SWITCH, GROUND POWER RETURN
5	*	*	Not Used
6	31-AJ7 (BK)	12	DRV.SIDE FRONT~WINDOW ADJUST. ~SWITCH, GROUND POWER RETURN
7	33-AJ16 (YE-BK)	14	ONE TOUCH~WINDOW ~RELAY *POWER, SWITCHED BETWEEN: BATTERY VOLTAGE, GROUND OR OPEN CIRCUIT.

Available Pigtail Kits
Pigtail Kit Part Number WPT-1267	Service Part Number: 3U2Z-14S411-PKB  Gauge: 14  Pin material: Tin (greased)  Cavities: 7  Vehicle Uses Switch - Adjustable Pedal Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Heated Back Light (Rear Defrost) Switch - Power Sliding Rear Window Switch - Power Window - Driver Switch - Power Window - LH - Rear Switch - Power Window - Passenger (Front) Switch - Power Window - RH - Rear Switch - Seat (driver) Switch - Traction Control
Pigtail Kit Part Number WPT-578	Service Part Number: 3U2Z-14S411-PKA  Gauge: 14  Pin material: Tin  Cavities: 7  Vehicle Uses Switch - Adjustable Pedal Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Heated Back Light (Rear Defrost) Switch - Power Window - Passenger (Front)
