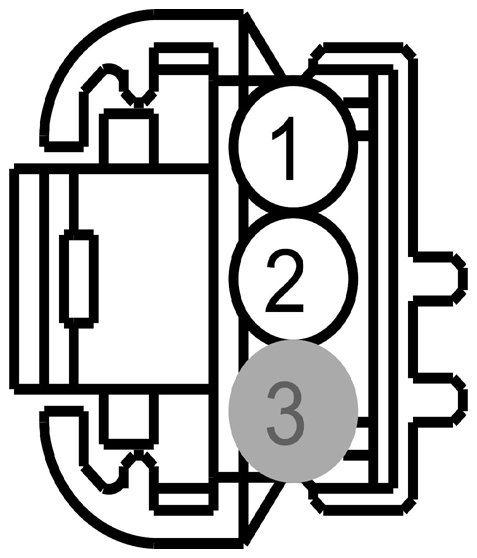

Radio Remote Control Switch Connector End View (C2264)

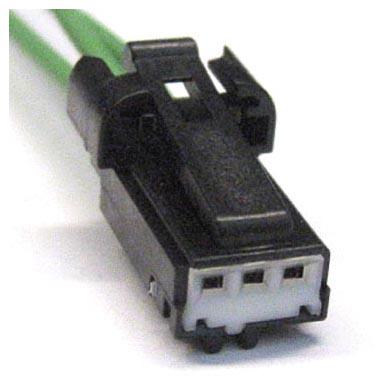

Fig 1: Identifying Radio Remote Control Switch Connector (C2264)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	8-MD26 (BK-WH)	22	RADIO~REMOTE CONTROL ~SWITCH, SIGNAL 1
2	9-MD26 (BN-YE)	22	RADIO~REMOTE CONTROL ~SWITCH, SIGNAL RETURN (REFERENCE/GROUND)
3	*	*	Not Used

Available Pigtail Kits
Pigtail Kit Part Number WPT-911	Service Part Number: 8U2Z-14S411-LA  Gauge: 18  Pin material: Silver  Cavities: 3  Vehicle Uses Fuse Panel Junction Block Lamp - Ambient Lighting Lamp - Front Park Lamp - Map Lamp - Park/Turn Lamp - PRNDL Indicator Lamp - Roof Marker Module - Driver Door Sensor - Speed Switch - Ambient Lighting Dimmer
