Transaxle Case: Assembly

NOTE: The converter housing side bearing cups for the transfer shaft bearing and differential case bearing will be installed during the assembly of the transaxle.

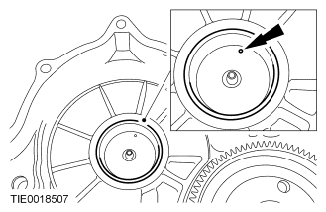

Fig 1: Installing Final Drive Input Gear Bearing Cup

Courtesy of FORD MOTOR CO.

Using the Differential Bearing Cup Installer and Handle, install the final drive input gear bearing cup.
Rotate the transaxle 180 degrees.

NOTE: Note the location of the bleed hole.

NOTE: Inspect the bleed hole for foreign material.

Fig 2: Locating Funnel

Courtesy of FORD MOTOR CO.

Install the funnel.
Using the Transfer Gear Bearing Cup Installer and Handle, install the LH transfer shaft gear bearing cup.

Fig 3: Installing Transfer Shaft Gear Bearing Cup (LH)
Courtesy of FORD MOTOR CO.
Using the Differential Bearing Cup Installer and Handle, install the final drive input gear bearing cup (LH shown in illustration).

Fig 4: Installing Final Drive Input Gear Bearing Cup (LH)
Courtesy of FORD MOTOR CO.
Using the Differential Bearing Cup Installer and Handle, install the LH differential case bearing cup.

Fig 5: Installing Differential Case Bearing Cup (LH)
Courtesy of FORD MOTOR CO.
Using the Axle Oil Seal Installer and Handle, install the halfshaft seals (LH shown in illustration).

Fig 6: Installing Halfshaft Seals (LH)
Courtesy of FORD MOTOR CO.
