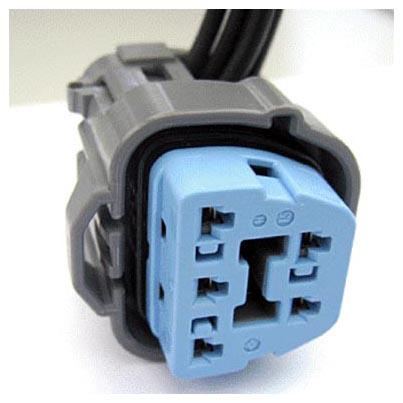

Fuel Pump Module Connector End View (C433)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | 8-GA7 (WH-RD) | 20 | FUEL~LEVEL ~SENSOR *DESTINATION NOTE GA9, SIGNAL 1 | |
| 2 | 9-GA7 (BN-RD) | 20 | FUEL~LEVEL ~SENSOR *DESTINATION NOTE GA9, SIGNAL RETURN (REFERENCE/GROUND) | |
| 3 | * | * | Not Used | |
| 4 | 31-RG2 (BK) | 14 | FUEL~PUMP ~GROUND (FPGND) | |
| 5 | 15S-RG2 (GN-OG) | 14 | FUEL~PUMP ~POWER (FPPWR) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-909 | Service Part Number: 8U2Z-14S411-NA Gauge: 14 Pin material: Tin Cavities: 5 Vehicle Uses
|
