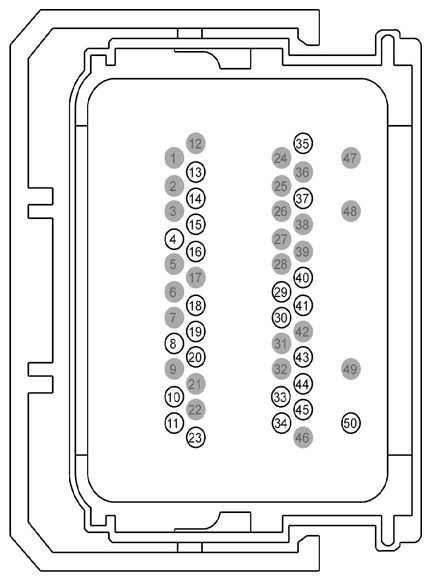

| 1 |
* |
* |
Not Used |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
* |
* |
Not Used |
|
| 4 |
8-RJ29 (WH-BU) |
20 |
OUTPUT SPEED SENSOR, SIGNAL 1 |
|
| 5 |
* |
* |
Not Used |
|
| 6 |
* |
* |
Not Used |
|
| 7 |
* |
* |
Not Used |
|
| 8 |
15S-TA37 (GN-YE) |
20 |
TRANSMISSION RANGE ~INDICATOR *P, SWITCHED BATTERY VOLTAGE, NOT OVERLOAD PROTECTED HOT ONLY IN START AND RUN |
|
| 9 |
* |
* |
Not Used |
|
| 10 |
7-TA71 (YE-BU) |
20 |
TRANSMISSION~PRESSURE ~SENSOR, CONSTANT D.C. VOLTAGE OTHER THAN BATTERY |
|
| 11 |
15S-TA23 (GN-YE) |
20 |
TRANSMISSION~SOLENOID SHIFT CONTROL SSA |
|
| 12 |
* |
* |
Not Used |
|
| 13 |
15-TA42 (GN-WH) |
20 |
TRANSMISSION RANGE ~INDICATOR *1, BATTERY VOLTAGE, NOT OVERLOAD PROTECTED HOT ONLY IN START AND RUN |
|
| 14 |
15-TA41 (GN-OG) |
20 |
TRANSMISSION RANGE ~INDICATOR *2, BATTERY VOLTAGE, NOT OVERLOAD PROTECTED HOT ONLY IN START AND RUN |
|
| 15 |
9-RJ29 (BN-BU) |
20 |
OUTPUT SPEED SENSOR, SIGNAL RETURN (REFERENCE/GROUND) |
|
| 16 |
8-RJ25 (WH-BU) |
18 |
POST CAT.~HO2S-12 ~SENSOR, SIGNAL 1 |
|
| 17 |
* |
* |
Not Used |
|
| 18 |
91S-RJ25 (BK-OG) |
18 |
POST CAT.~HTR-12 ~SENSOR, SWITCHED GROUND |
|
| 19 |
15S-TA17 (GN-OG) |
20 |
TRANSMISSION~TRANSMISSION FLUID TEMPERATURE (TFT) |
|
| 20 |
15S-TA40 (GN-BK) |
20 |
TRANSMISSION RANGE ~INDICATOR *OD, SWITCHED BATTERY VOLTAGE, NOT OVERLOAD PROTECTED HOT ONLY IN START AND RUN |
|
| 21 |
* |
* |
Not Used |
|
| 22 |
* |
* |
Not Used |
|
| 23 |
15S-TA24 (GN-BU) |
20 |
TRANSMISSION~SOLENOID SHIFT CONTROL SSB |
|
| 24 |
* |
* |
Not Used |
|
| 25 |
* |
* |
Not Used |
|
| 26 |
* |
* |
Not Used |
|
| 27 |
* |
* |
Not Used |
|
| 28 |
* |
* |
Not Used |
|
| 29 |
8-TA71 (WH-BU) |
20 |
TRANSMISSION~PRESSURE ~SENSOR, SIGNAL 1 |
|
| 30 |
15S-TA21 (GN-BK) |
20 |
OVERDRIVE~CANCEL ~SWITCH (COLUMN/FLOOR SHIFT), SWITCHED BATTERY VOLTAGE, NOT OVERLOAD PROTECTED HOT ONLY IN START AND RUN |
|
| 31 |
* |
* |
Not Used |
|
| 32 |
* |
* |
Not Used |
|
| 33 |
15S-TA64 (GN-OG) |
20 |
TRANSMISSION~SOLENOID SHIFT CONTROL SSD |
|
| 34 |
31S-LG45 (BK-GN) |
20 |
BACKUP LAMP~RELAY, SWITCHED GROUND POWER RETURN |
|
| 35 |
15S-TA38 (GN-BU) |
20 |
TRANSMISSION RANGE ~INDICATOR *R, SWITCHED BATTERY VOLTAGE, NOT OVERLOAD PROTECTED HOT ONLY IN START AND RUN |
|
| 36 |
* |
* |
Not Used |
|
| 37 |
8-TA27 (WH-VT) |
20 |
TRANSMISSION~TURBINE SPEED ~SENSOR, SIGNAL 1 |
|
| 38 |
* |
* |
Not Used |
|
| 39 |
* |
* |
Not Used |
|
| 40 |
9-PA1 (BN-RD) |
18 |
TRANSMISSION~TRANSMISSION FLUID TEMPERATURE (TFT) SIGNAL RETURN |
|
| 41 |
15S-TA39 (GN-RD) |
20 |
TRANSMISSION RANGE ~INDICATOR *N, SWITCHED BATTERY VOLTAGE, NOT OVERLOAD PROTECTED HOT ONLY IN START AND RUN |
|
| 42 |
* |
* |
Not Used |
|
| 43 |
8-TA36 (WH-GN) |
20 |
TRANSMISSION~SOLENOID PRESSURE CONTROL PCA |
|
| 44 |
15S-TA65 (GN-WH) |
20 |
TRANSMISSION~SOLENOID SHIFT CONTROL SSE |
|
| 45 |
15S-TA63 (GN-BK) |
20 |
TRANSMISSION~SOLENOID SHIFT CONTROL SSC |
|
| 46 |
* |
* |
Not Used |
|
| 47 |
* |
* |
Not Used |
|
| 48 |
* |
* |
Not Used |
|
| 49 |
* |
* |
Not Used |
|
| 50 |
91S-TA17 (BK-RD) |
20 |
TRANSMISSION~TRANSMISSION SOLENOID POWER CONTROL (TSPC) |
|
