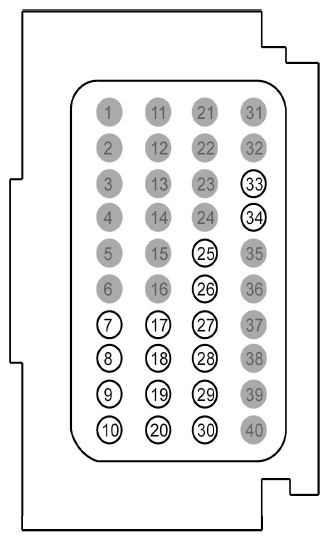

Restraints Control Module (RCM) Connector End View (C310B)

Fig 1: Identifying Restraints Control Module Connector (C310B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	*	*	Not Used
5	*	*	Not Used
6	*	*	Not Used
7	15S-JA15 (GN-RD)	20	SAFING~AIR BAG ~SWITCH, SWITCHED BATTERY VOLTAGE, NOT OVERLOAD PROTECTED HOT ONLY IN START AND RUN
8	91S-JA15 (BK-OG)	20	SAFING~AIR BAG ~SWITCH, SWITCHED GROUND
9	15S-JA34 (GN-BU)	20	PAS.SIDE~PYROTECH.BUCKLE~PRETENSIONER ~UNIT, RETURN
10	90-JA34 (BK-BU)	20	PAS.SIDE~PYROTECH.BUCKLE~PRETENSIONER ~UNIT, FEED
11	*	*	Not Used
12	*	*	Not Used
13	*	*	Not Used
14	*	*	Not Used
15	*	*	Not Used
16	*	*	Not Used
17	91S-JA33 (BK-RD)	20	DRV.SIDE~PYROTECH.BUCKLE~PRETENSIONER ~UNIT, SWITCHED GROUND
18	15S-JA33 (GN-OG)	20	DRV.SIDE~PYROTECH.BUCKLE~PRETENSIONER ~UNIT, SWITCHED BATTERY VOLTAGE, NOT OVERLOAD PROTECTED HOT ONLY IN START AND RUN
19	91S-JA37 (BK-GN)	20	DRIVER~SIDE-AIR BAG ~UNIT, SWITCHED GROUND
20	15S-JA37 (GN-BK)	20	DRIVER~SIDE-AIR BAG ~UNIT, SWITCHED BATTERY VOLTAGE, NOT OVERLOAD PROTECTED HOT ONLY IN START AND RUN
21	*	*	Not Used
22	*	*	Not Used
23	*	*	Not Used
24	*	*	Not Used
25	8-JA54 (WH)	20	DRIVER~SEAT BELT ~SWITCH, SIGNAL 1
26	15S-JA39 (GN-YE)	20	DRIVER~SIDE-AIR BAG ~SENSOR, SWITCHED BATTERY VOLTAGE, NOT OVERLOAD PROTECTED HOT ONLY IN START AND RUN
27	91-JA39 (BK-YE)	20	DRIVER~SIDE-AIR BAG ~SENSOR, GROUND
28	91-JA40 (BK-WH)	20	PASSENGER~SIDE-AIR BAG ~SENSOR, GROUND
29	15-JA40 (GN-WH)	20	PASSENGER~SIDE-AIR BAG ~SENSOR, SWITCHED BATTERY VOLTAGE, NOT OVERLOAD PROTECTED HOT ONLY IN START AND RUN
30	8-JA55 (WH-BK)	20	PASSENGER~SEAT BELT ~SWITCH, SIGNAL 1
31	*	*	Not Used
32	*	*	Not Used
33	7-JA53 (YE-RD)	20	DRIVER~SEAT POSITION ~SENSOR, CONSTANT D.C. VOLTAGE OTHER THAN BATTERY
34	9-JA10 (BN-YE)	20	AIR BAG ~MODULE, SIGNAL RETURN (REFERENCE/GROUND)
35	*	*	Not Used
36	*	*	Not Used
37	*	*	Not Used
38	*	*	Not Used
39	*	*	Not Used
40	*	*	Not Used
