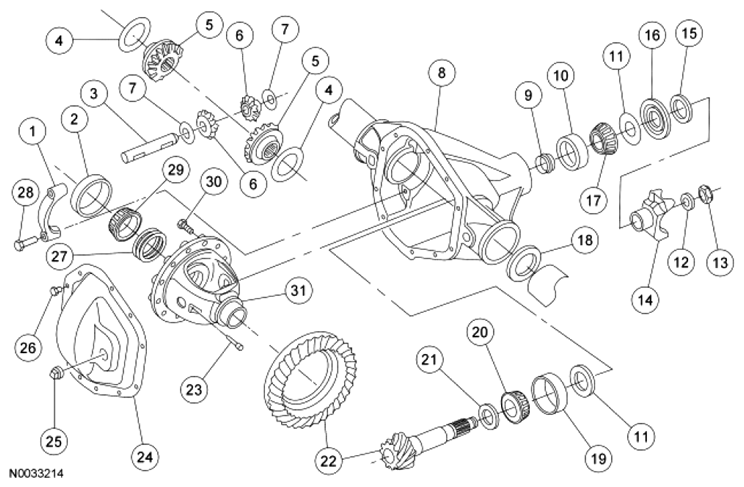

Front Drive Axle, Disassembled View: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Differential bearing cap (part of 3B092) |
| 2 | 4222 | Differential bearing cup |
| 3 | 4211 | Differential pinion shaft |
| 4 | 4230 | Differential side gear thrust washers (part of 3204) |
| 5 | 4236 | Differential side gears (part of 3204) |
| 6 | 4215 | Differential pinion gears (part of 3222) |
| 7 | 372632-S | Differential pinion gear thrust washers |
| 8 | 3B092 | Differential housing |
| 9 | 4662 | Collapsible spacer |
| 10 | 4628 | Differential drive pinion bearing cup |
| 11 | 386989 | Front axle pinion shaft oil seal kit |
| 12 | 372632-S | Washer |
| 13 | 354845-S | Pinion nut |
| 14 | 4851 | Pinion flange |
| 15 | 4859 | Drive pinion oil seal deflector (part of 3N296) |
| 16 | 3N134 | Front axle drive pinion seal (part of 3N296) |
| 17 | 4621 | Differential pinion bearing |
| 18 | 3N267 | Axle shaft oil seal |
| 19 | 4628 | Front axle pinion bearing cup |
| 20 | 4630 | Differential pinion bearing |
| 21 | 4663 | Drive pinion position shim |
| 22 | 3A410 | Differential ring gear and pinion |
| 23 | - | Differential pinion shaft lockpin (part of 3204) |
| 24 | 4033 | Differential housing cover |
| 25 | 4N282 | Fill plug |
| 26 | 4346 | Differential housing cover bolt |
| 27 | 4067 | Differential bearing shim |
| 28 | - | Differential bearing cap bolt (part of 3B092) |
| 29 | 4221 | Differential bearing |
| 30 | 4346 | Differential ring gear bolt |
| 31 | 4205 | Differential case assembly |
