Washer System

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

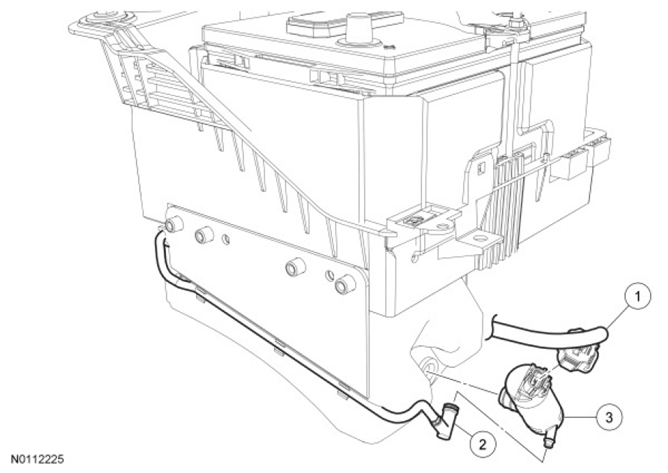

Fig 1: Exploded View Of Washer System
G07486192Courtesy of FORD MOTOR CO.
Item Part Number Description
1 17D539 Washer pump electrical connector
2 17K605 Washer reservoir hose
3 17664 Washer pump
  1. For additional information, refer to the procedures in this article.
