Anti-Lock Brake System (Abs) Module Connector End View (C155)

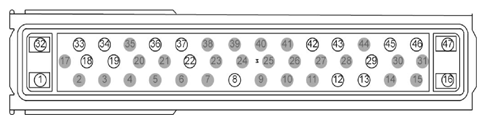

Fig 1: Identifying Anti-Lock Brake System Module Connector (C155)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	30-CF13 (RD)	10	ABS~PUMP ~MOTOR, BATTERY VOLTAGE, INCL. PRIMARY FUSED HOT AT ALL TIMES
2	*	*	Not Used
3	*	*	Not Used
4	*	*	Not Used
5	*	*	Not Used
6	*	*	Not Used
7	*	*	Not Used
8	15-CF6 (GN-YE)	20	ABS ~MODULE, BATTERY VOLTAGE, NOT OVERLOAD PROTECTED HOT ONLY IN START AND RUN
9	*	*	Not Used
10	*	*	Not Used
11	*	*	Not Used
12	4-EC7 (GY-RD)	20	POWERTRAIN~CONTROL ~MODULE *, DATA LINK/BUS POSITIVE HS CAN+
13	5-EC7 (BU-RD)	20	POWERTRAIN~CONTROL ~MODULE *, DATA LINK/BUS NEGATIVE (LOGIC RETURN) HS CAN-
14	*	*	Not Used
15	*	*	Not Used
16	91-CF6 (BK-YE)	10	ABS ~MODULE, GROUND
17	*	*	Not Used
18	4-CF67 (GY-RD)	20	YAW ~SENSOR *, DATA LINK/BUS POSITIVE
19	5-CF67 (BU-RD)	20	YAW ~SENSOR *, DATA LINK/BUS NEGATIVE (LOGIC RETURN)
20	*	*	Not Used
21	*	*	Not Used
22	7-CF1 (YE-RD)	20	1.SPLICE OR BUSBAR, CONSTANT D.C. VOLTAGE OTHER THAN BATTERY
23	*	*	Not Used
24	*	*	Not Used
25	*	*	Not Used
26	*	*	Not Used
27	*	*	Not Used
28	*	*	Not Used
29	9-CF67 (BN-RD)	20	YAW ~SENSOR, SIGNAL RETURN (REFERENCE/GROUND)
30	*	*	Not Used
31	*	*	Not Used
32	30-CF6 (RD)	16	ABS ~MODULE, BATTERY VOLTAGE, INCL. PRIMARY FUSED HOT AT ALL TIMES
33	9-CF38 (BN-RD)	20	RIGHT FRONT~WHEEL ~SENSOR, SIGNAL RETURN (REFERENCE/GROUND)
34	8-CF38 (WH-RD)	20	RIGHT FRONT~WHEEL ~SENSOR, SIGNAL 1
35	*	*	Not Used
36	8-CF34 (WH-BU)	18	LEFT REAR~WHEEL ~SENSOR, SIGNAL 1
37	9-CF34 (BN-BU)	18	LEFT REAR~WHEEL ~SENSOR, SIGNAL RETURN (REFERENCE/GROUND)
38	*	*	Not Used
39	*	*	Not Used
40	*	*	Not Used
41	*	*	Not Used
42	9-CF40 (BN-GN)	18	RIGHT REAR~WHEEL ~SENSOR, SIGNAL RETURN (REFERENCE/GROUND)
43	8-CF40 (WH-GN)	18	RIGHT REAR~WHEEL ~SENSOR, SIGNAL 1
44	*	*	Not Used
45	8-CF32 (WH)	20	LEFT FRONT~WHEEL ~SENSOR, SIGNAL 1
46	9-CF32 (BN)	20	LEFT FRONT~WHEEL ~SENSOR, SIGNAL RETURN (REFERENCE/GROUND)
47	91-CF13 (BK-BU)	10	ABS~PUMP ~MOTOR, GROUND
