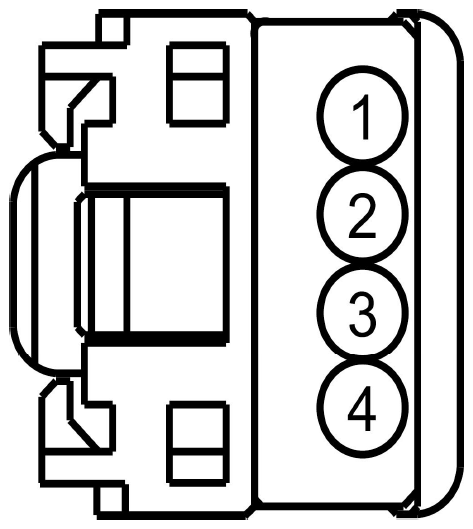

Audio Input Jack Connector End View (C2401)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | 10-MD27 (BN-RD) | 22 | CTRL MOD. - AUDIO # RADIO RIGHT | |
| 2 | 9-MD27 (BU-RD) | 22 | CTRL MOD. - AUDIO # RADIO RIGHT | |
| 3 | 3-MD27 (YE-RD) | 22 | RADIO~INTERFACE ~MODULE, AUDIO REFERENCE (RETURN/SHIELD) | |
| 4 | 8-MD27 (GY-RD) | 22 | RADIO~INTERFACE ~MODULE, SIGNAL 1 |

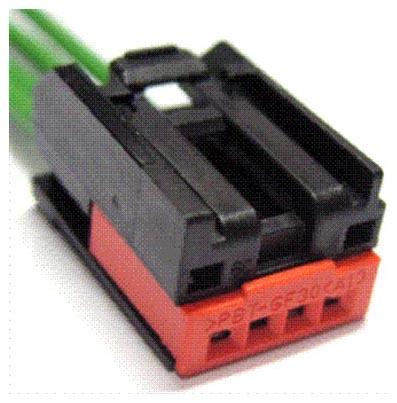

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1139 | Service Part Number: 3U2Z-14S411-PRC Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses
|
