Quick Release Coupling: Connect

  1. Inspect and clean both quick coupling ends.
    G08408648
  2. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    Press the retainer clip into the quick connect coupling body until flush and the tabs are locked in place.

    G08408649
  3. Connect the battery ground cable.

    Refer to: BATTERY DISCONNECT AND CONNECT - PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV) .

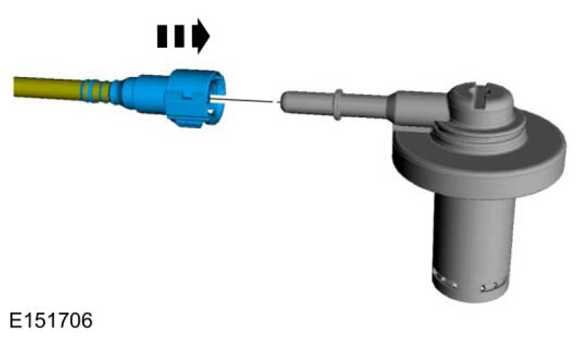

  1. G08408652
  2. G09058243
  3. Connect the battery ground cable.

    Refer to: BATTERY DISCONNECT AND CONNECT - PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV) .



  1. G08408655
  2. G08408656
  3. Connect the battery ground cable.

    Refer to: BATTERY DISCONNECT AND CONNECT - PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV) .



  1. G08408659
  2. Connect the battery ground cable.

    Refer to: BATTERY DISCONNECT AND CONNECT - PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV) .
