Secondary On Board Diagnostic Module C (SOBDMC)/Transmission Control Module (TCM) Connector End View (C1458C)

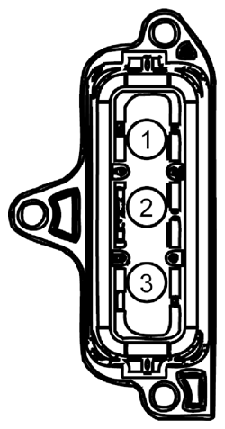

Fig 1: Identifying Secondary On Board Diagnostic Module C/Transmission Control Module Connector (C1458C)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	HYA04 (WH-BU)	20	MWP (MOTOR W PHASE)
2	HYA05 (WH-OG)	20	MVP (MOTOR V PHASE)
3	HYA06 (WH-BU)	20	MUP (MOTOR U PHASE)
