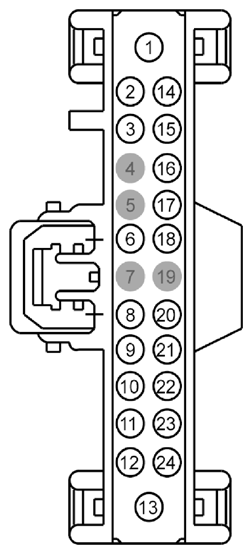

| 1 |
SBP29 (GY-RD) |
18 |
FUSE - 29 OR CIRCUIT BREAKER |
|
| 2 |
VME43 (BK) |
18 |
CTRL MOD. - ANTENNA # SATELLITE DIGITAL RADIO |
|
| 3 |
CDC26 (GY-OG) |
22 |
RELAY - STARTER INHIBIT |
|
| 4 |
* |
* |
Not Used |
|
| 5 |
* |
* |
Not Used |
|
| 6 |
RME45 (YE-GN) |
22 |
JACK - AUDIO # EXT. AUX IN LEFT (-) |
premium Edge W/O Sync |
| 7 |
* |
* |
Not Used |
|
| 8 |
RME06 (GY-YE) |
18 |
CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP - |
premium MKX |
| 9 |
RME09 (BN-YE) |
18 |
CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) |
premium Edge, premium MKX |
| 10 |
RME07 (WH-BN) |
18 |
CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) |
premium Edge, premium MKX |
| 10 |
RME58 (BN-BU) |
22 |
CTRL MOD. - AUDIO # OUTPUT LEFT 2 |
Sony/THX |
| 11 |
RME18 (YE) |
22 |
CTRL MOD. - AUDIO # RADIO RIGHT |
Sony/THX |
| 11 |
RME10 (WH-OG) |
18 |
CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) |
premium Edge, premium MKX |
| 12 |
RME12 (BN-BU) |
18 |
CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) |
premium Edge, premium MKX |
| 13 |
GD114 (BK-BU) |
16 |
GROUND - CROSS CAR BEAM |
|
| 14 |
VDB13 (BU-GY) |
22 |
INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA HIGH |
|
| 15 |
VDB14 (VT-GY) |
22 |
INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA LOW |
|
| 16 |
DME45 (*) |
20 |
JACK - AUDIO # EXT. AUX IN |
premium Edge W/O Sync |
| 17 |
VME45 (BU) |
22 |
JACK - AUDIO # EXT. AUX IN LEFT (+) |
premium Edge W/O Sync |
| 18 |
VME46 (BU-GN) |
22 |
JACK - AUDIO # EXT. AUX IN RIGHT (+) |
premium Edge W/O Sync |
| 19 |
* |
* |
Not Used |
|
| 20 |
VME06 (GN) |
18 |
CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP + |
premium MKX |
| 21 |
VME09 (WH-GN) |
18 |
CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) |
premium Edge, premium MKX |
| 22 |
VME07 (WH) |
18 |
CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) |
premium Edge, premium MKX |
| 22 |
VME58 (YE-VT) |
22 |
CTRL MOD. - AUDIO # OUTPUT LEFT 2 |
Sony/THX |
| 23 |
VME18 (VT) |
22 |
CTRL MOD. - AUDIO # RADIO RIGHT |
Sony/THX |
| 23 |
VME10 (WH-VT) |
18 |
CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) |
premium Edge, premium MKX |
| 24 |
VME12 (BN-WH) |
18 |
CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) |
premium Edge, premium MKX |
