Climate Controlled Seat Backrest Module, Driver Side Connector End View (C3322)

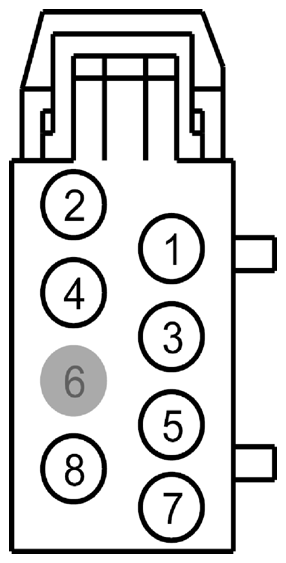

Fig 1: Identifying Climate Controlled Seat Backrest Module, Driver Side Connector (C3322)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CHS01 (GY-VT)	20	CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER
2	CHS03 (GN-BN)	22	CTRL MOD. - HOT/COLD SEAT # DRIVER FAN
3	RHS01 (WH-VT)	20	CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER
4	RHS03 (GY-OG)	22	CTRL MOD. - HOT/COLD SEAT # DRIVER FAN
5	VHS35 (VT-OG)	22	SENSOR - BACK TEMP. DRIVER
6	*	*	Not Used
7	VHS16 (BU-GN)	22	CTRL MOD. - HOT/COLD SEAT # DRIVER BACK BLOWER SPEED CONTROL
8	RHS15 (GY-BN)	22	CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR BACK TEMP.

Available Pigtail Kits

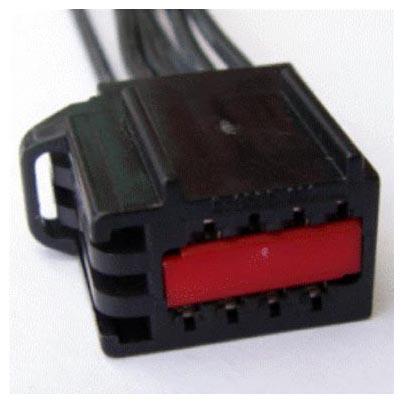

Pigtail Kit Part Number WPT-961	Service Part Number: 3U2Z-14S411-RHB  Gauge: 14  Pin material: Silver  Cavities: 8  Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Element - Heated Seat

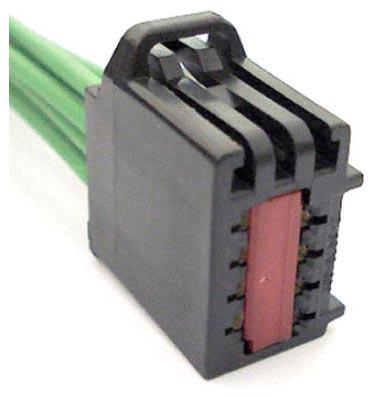

Pigtail Kit Part Number WPT-500	Service Part Number: 3U2Z-14S411-RHA  Gauge: 16  Pin material: Tin  Cavities: 8  Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Element - Heated Seat Mirror - Sideview Module - Heated Seat (driver) Switch - Heated Seat Switch - Heated Seat - LH - Front Switch - Heated Seat - LH - Rear Switch - Heated Seat - RH - Front Switch - Multifunction
