Adaptive Front Lighting Module Connector End View (C2129)

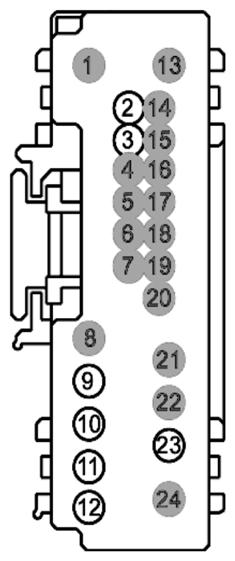

Fig 1: Identifying Adaptive Front Lighting Module Connector (C2129)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
3	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
4	*	*	Not Used
5	*	*	Not Used
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used
9	CBB43 (GY)	18	FUSE OR CIRCUIT BREAKER
10	CBB39 (VT-WH)	22	FUSE OR CIRCUIT BREAKER
11	GD138 (BK-WH)	18	GROUND - COWL SIDE/PILLAR A RIGHT (6L2T)
12	CLF06 (BN-GN)	16	CTRL MOD. - CORNERING LAMP LEFT
13	*	*	Not Used
14	*	*	Not Used
15	*	*	Not Used
16	*	*	Not Used
17	*	*	Not Used
18	*	*	Not Used
19	*	*	Not Used
20	*	*	Not Used
21	*	*	Not Used
22	*	*	Not Used
23	CLF07 (GY-OG)	16	CTRL MOD. - CORNERING LAMP RIGHT
24	*	*	Not Used
