Anti-Lock Brake System (Abs) Module Connector End View (C135)

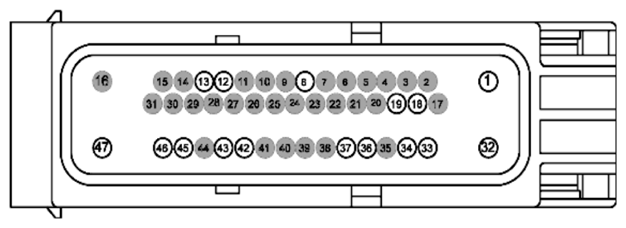

Fig 1: Identifying Anti-Lock Brake System Module Connector (C135)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB26 (YE-RD)	10	FUSE OR CIRCUIT BREAKER
2	*	*	Not Used
3	*	*	Not Used
4	*	*	Not Used
5	*	*	Not Used
6	*	*	Not Used
7	*	*	Not Used
8	CBP03 (GY)	20	FUSE OR CIRCUIT BREAKER
9	*	*	Not Used
10	*	*	Not Used
11	*	*	Not Used
12	VDB04 (WH-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
13	VDB05 (WH)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
14	*	*	Not Used
15	*	*	Not Used
16	*	*	Not Used
17	*	*	Not Used
18	VCA23 (BU-WH)	20	CTRL MOD. - SENSOR YAW ABS/IVD/TC CAN BUS HIGH
19	VCA24 (GN-OG)	20	CTRL MOD. - SENSOR YAW ABS/IVD/TC CAN BUS LOW
20	*	*	Not Used
21	*	*	Not Used
22	*	*	Not Used
23	*	*	Not Used
24	*	*	Not Used
25	*	*	Not Used
26	*	*	Not Used
27	*	*	Not Used
28	*	*	Not Used
29	*	*	Not Used
30	*	*	Not Used
31	*	*	Not Used
32	SBB25 (RD)	12	FUSE OR CIRCUIT BREAKER
33	RCA19 (YE)	20	CTRL MOD. - SENSOR WHEEL SPEED RIGHT FRONT
34	VCA05 (VT)	20	SENSOR - WHEEL SPEED RIGHT FRONT
35	*	*	Not Used
36	VCA04 (BU-OG)	20	SENSOR - WHEEL SPEED LEFT REAR
37	RCA18 (BN-GN)	20	CTRL MOD. - SENSOR WHEEL SPEED LEFT REAR
38	*	*	Not Used
39	*	*	Not Used
40	*	*	Not Used
41	*	*	Not Used
42	RCA20 (BN)	20	CTRL MOD. - SENSOR WHEEL SPEED RIGHT REAR
43	VCA06 (WH-OG)	20	SENSOR - WHEEL SPEED RIGHT REAR
44	*	*	Not Used
45	VCA03 (VT)	20	SENSOR - WHEEL SPEED LEFT FRONT
46	RCA17 (YE)	20	CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT
47	GD122 (BK)	10	GROUND - FENDER FRONT LEFT # 3RD POINT
