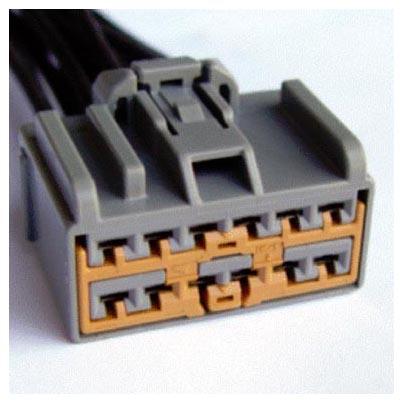

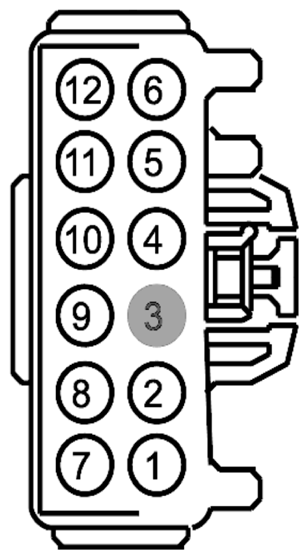

Seat Control Switch, Driver Side Front Connector End View (C369)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CPS27 (BU-BN) | 20 | SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP | |
| 2 | CPS25 (WH-VT) | 20 | SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP | |
| 3 | * | * | Not Used | |
| 4 | CPS23 (GN-VT) | 20 | SWITCH - SEAT ADJUST. DRIVER FORWARD | |
| 5 | GD906 (BK-GY) | 16 | GROUND - SEAT # MEMORY MODULE HIGH CURRENT | |
| 6 | CPS24 (GY) | 20 | SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN | |
| 7 | CPS65 (WH-GN) | 20 | SWITCH - DRIVER LUMBAR SOLENOID LOWER CELL INFLATE | |
| 8 | CPS30 (VT-BN) | 20 | SWITCH - SEAT ADJUST. DRIVER RECLINE REARWARD | |
| 9 | CPS28 (GN) | 20 | SWITCH - SEAT ADJUST. DRIVER REARWARD | |
| 10 | CPS64 (BN-VT) | 20 | SWITCH - DRIVER LUMBAR SOLENOID LOWER CELL DEFLATE | |
| 11 | CPS29 (WH-BN) | 20 | SWITCH - SEAT ADJUST. DRIVER RECLINE FORWARD | |
| 12 | CPS26 (YE-BU) | 20 | SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-396 | Service Part Number: 3U2Z-14S411-BKA Gauge: 12 Pin material: Tin Cavities: 12 Vehicle Uses
|
