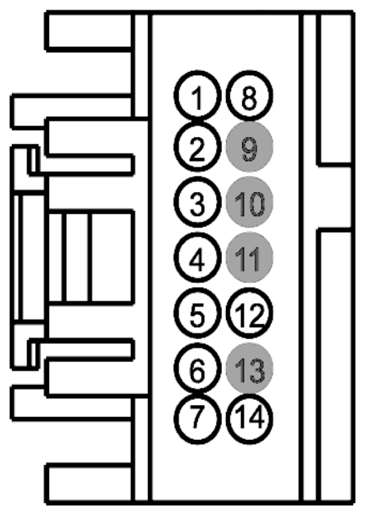

Steering Column Control Module (SCCM) Connector End View (C226A)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBP07 (WH-RD) | 22 | FUSE OR CIRCUIT BREAKER | |
| 2 | VMC34 (WH) | 26 | CTRL MOD. - STEERING WHEEL MODULE LIN BUS | |
| 3 | CRW10 (BU-GN) | 26 | SWITCH - FRONT WIPER LOW | |
| 4 | VDB04 (WH-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 5 | VDB05 (WH) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 6 | VMC29 (YE) | 22 | SWITCH - INFORMATION/MESSAGE CENTER SELECT | |
| 7 | CMC29 (GN-VT) | 22 | SWITCH - INFORMATION/MESSAGE CENTER SELECT + | |
| 8 | RMC27 (WH-BN) | 22 | CTRL MOD. - INSTRUMENT CLUSTER # SWITCH INFORMATION/MESSAGE CENTER SELECT | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | VLN04 (VT-GY) | 22 | SWITCH - IP/SWITCH ILLUMINATION | |
| 13 | * | * | Not Used | |
| 14 | GD138 (BK-WH) | 22 | GROUND - COWL SIDE/PILLAR A RIGHT (6L2T) |

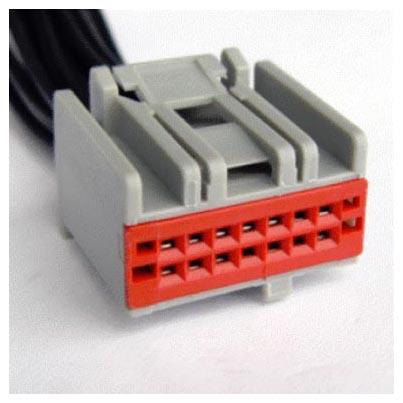

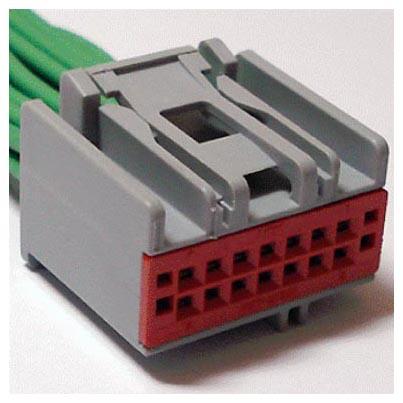

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-287 | Service Part Number: 3U2Z-14S411-JEA Gauge: 18 Pin material: Tin Cavities: 13 Vehicle Uses
|
| Pigtail Kit Part Number WPT-974 | Service Part Number: 3U2Z-14S411-JEB Gauge: 18 Pin material: Silver Cavities: 14 Vehicle Uses
|
