Fuel Pump Driver Module (FPDM): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown, RH similar.

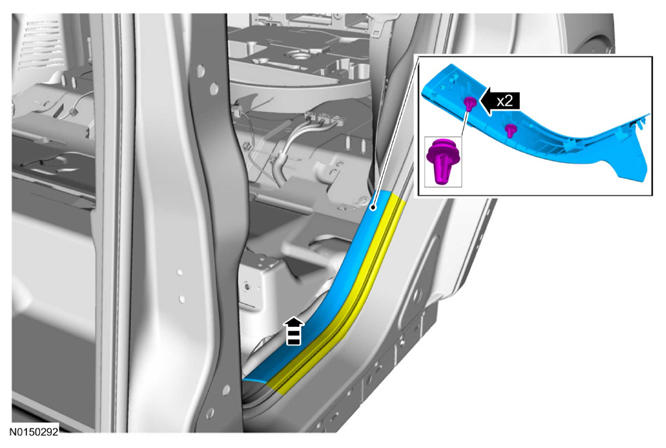

Remove right rear door scuff plate trim panel.

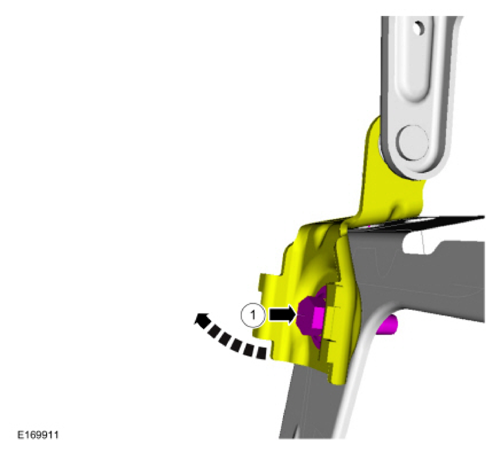

1. Torque : 30 lb.ft (40 Nm)

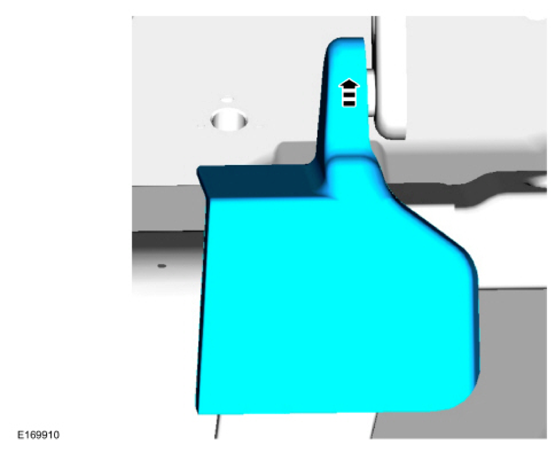

NOTE: Position the carpet aside for access.

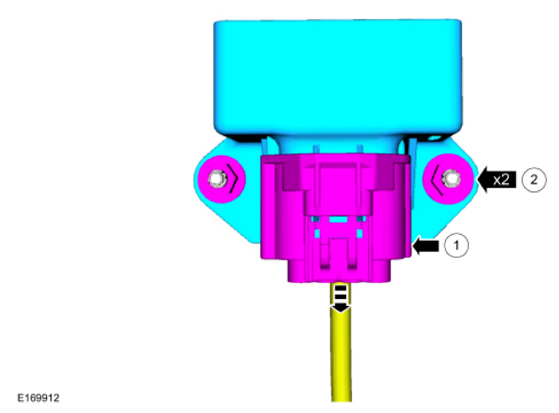

1. 2. Torque : 97 lb.in (11 Nm)
