Component Location: Notes
WARNING: This page is about a different car, the 2013 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

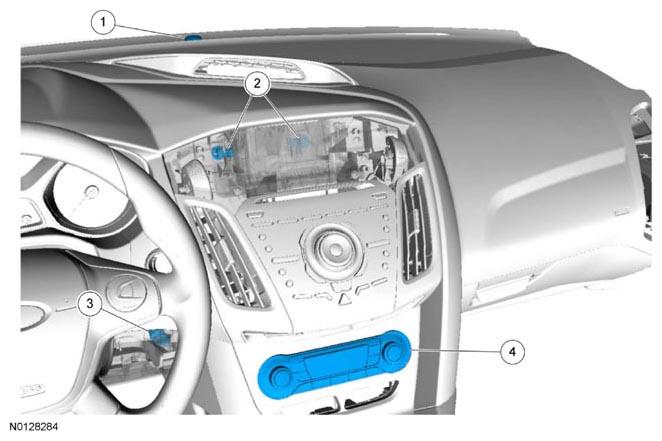

| Item |
Description |
| 1 |
Sunload sensor |
| 2 |
Register discharge air temperature sensors |
| 3 |
In-vehicle temperature and humidity sensor |
| 4 |
HVAC module |
| Item |
Description |
| 1 |
Air inlet duct |
| 2 |
Blower motor |
| 3 |
Evaporator core |
| 4 |
Heater core |

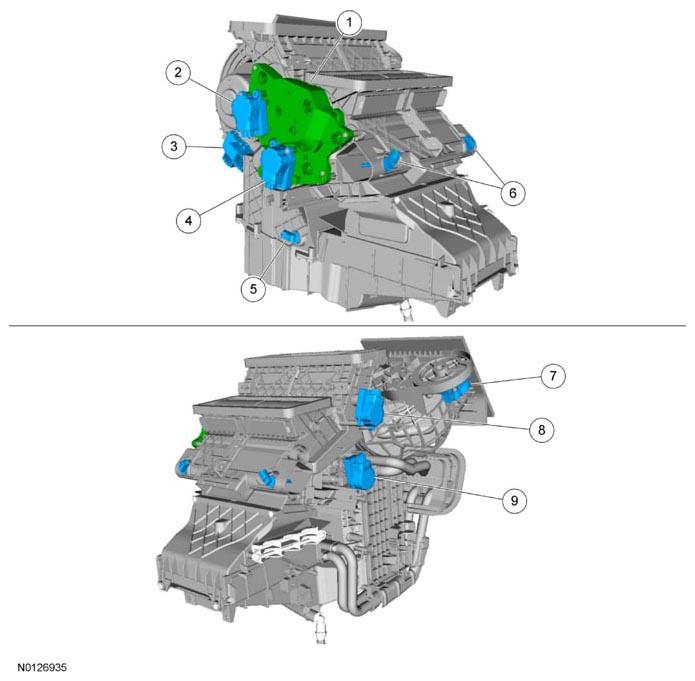

| Item |
Description |
| 1 |
Actuating assembly |
| 2 |
Floor door airflow mode door actuator |
| 3 |
Blower motor speed control |
| 4 |
LH temperature blend door actuator |
| 5 |
Evaporator temperature sensor |
| 6 |
Floor discharge air temperature sensor |
| 7 |
Air inlet door mode door actuator |
| 8 |
RH temperature blend door actuator |
| 9 |
Defrost/panel door airflow mode door actuator |
