Remote Function Actuator (RFA) Module: Installation
WARNING: This page is about a different car, the 2013 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If installing a new RFA module, the ignition cannot be turned ON until a parameter reset is performed and 2 keys are programmed to the vehicle. The RFA module still communicates with the scan tool with the ignition OFF. Use the previous scan tool session or start a scan tool session using the PCM part number or tear tag.
All vehicles

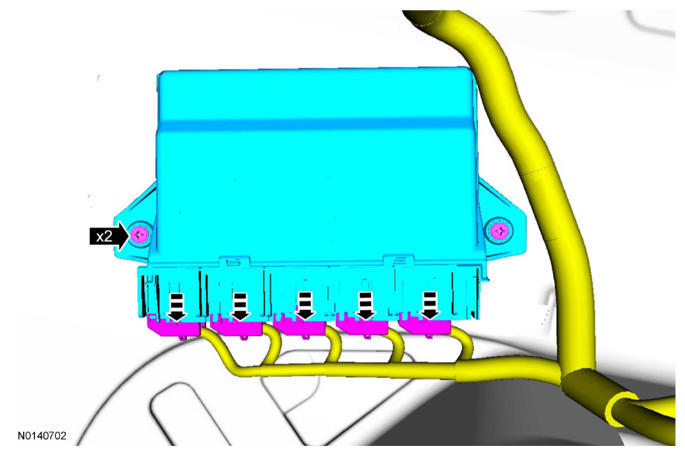

- Install the RFA module and the 2 retainers.
- Install the subwoofer. Refer to
INFORMATION AND ENTERTAINMENT SYSTEMS - SONY 8 INCH (203MM) TOUCHSCREEN, 10 SPEAKERS
.
All vehicles
- Install the LH quarter trim panel. Refer to INTERIOR TRIM AND ORNAMENTATION .
- If installing a new RFA module carry out the parameter reset. Refer to ANTI-THEFT - PASSIVE ANTI-THEFT SYSTEM (PATS), WITHOUT INTELLIGENT ACCESS (IA) or Refer to ANTI-THEFT - PASSIVE ANTI-THEFT SYSTEM (PATS), WITH INTELLIGENT ACCESS (IA) .
- If installing a new RFA module carry out the key programming procedure. Refer to ANTI-THEFT - PASSIVE ANTI-THEFT SYSTEM (PATS), WITHOUT INTELLIGENT ACCESS (IA) or Refer to ANTI-THEFT - PASSIVE ANTI-THEFT SYSTEM (PATS), WITH INTELLIGENT ACCESS (IA) .
- Carry out the RFA module self-test (must include an on-demand self-test) and then repeat the self-test to confirm all DTCs have been cleared.
