Exploded View

WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

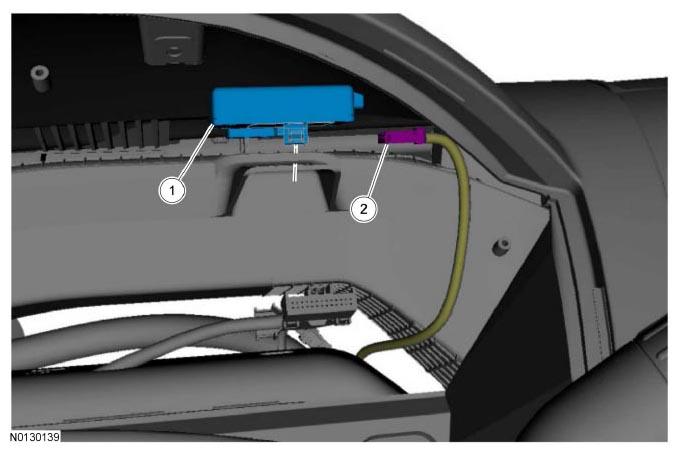

G07428702
Item Part Number Description
1 10E893 GPSM
2 - GPSM  electrical connector (part of 14401)
