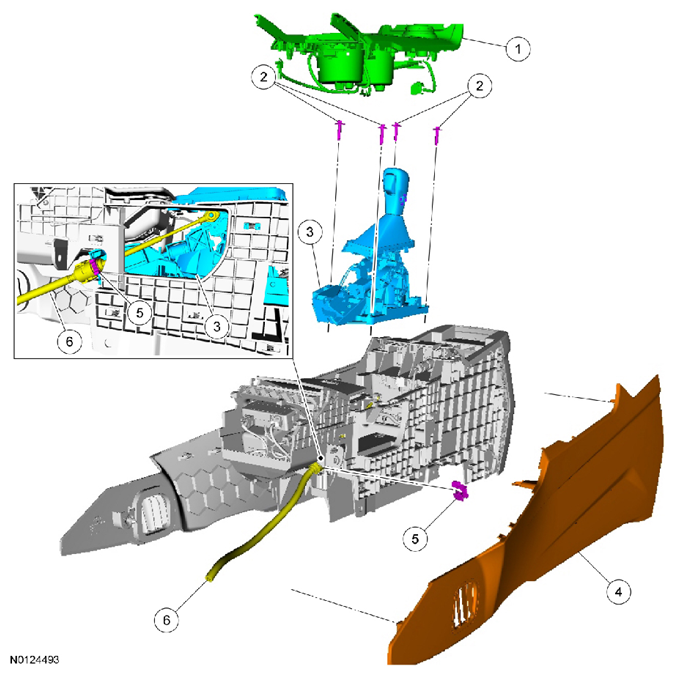

Exploded View
WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 7D443 | Upper finish panel | - | - | - |
| 2 | W503026 | Selector lever bolt (4 required) | 5 Nm (44 lb-in) | - | - |
| 3 | 7210 | Selector lever | - | - | - |
| 4 | 7804608 | Lower floor console side trim panel | - | - | - |
| 5 | 7H181 | Selector lever cable retaining clip | - | - | - |
| 6 | 7E395 | Selector lever cable | - | - | - |
