Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front driveshaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

  2. Remove the TJ joint assembly.

    (Refer to Driveshaft Assembly - "TJ JOINT ")

  3. Remove the Dynamic damper.

    (Refer to Driveshaft Assembly - "DYNAMIC DAMPER ")

  4. Using a plier or flat-tipped (-) screwdriver, remove the BJ boot bands (A).

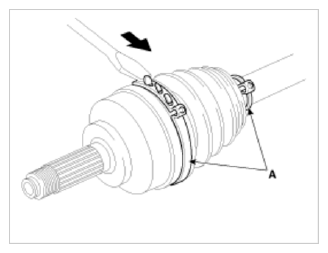

    Fig 1: Removing BJ Boot Bands Using Plier/Flat-Tipped Screwdriver
    G09886346Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the BJ boot.
  6. Install in the reverse order of removal.
    CAUTION:
    • Do not disassemble the BJ assembly.
    • Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.
    • The boot band should be replaced with a new one.
