Repair procedures: Installation

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply soap powder on the shaft to prevent being damaged between the shaft spline and the dynamic damper.
  2. Install the dynamic damper.
  3. Install the dynamic damper band (A).
  4. Using the SST (09495-3K000), secure the TJ boot bands (B).

    Clearance (A):  2.0 mm (0.079 in) or less

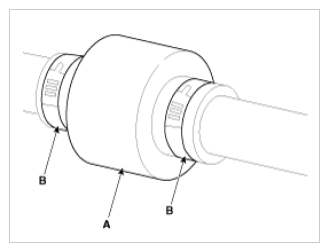

    Fig 1: Identifying Dynamic Damper And TJ Boot Bands
    G09886344Courtesy of HYUNDAI MOTOR AMERICA
  5. Install the TJ joint assembly.

    (Refer to Driveshaft Assembly - "TJ JOINT ")

  6. Install the front driveshaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
