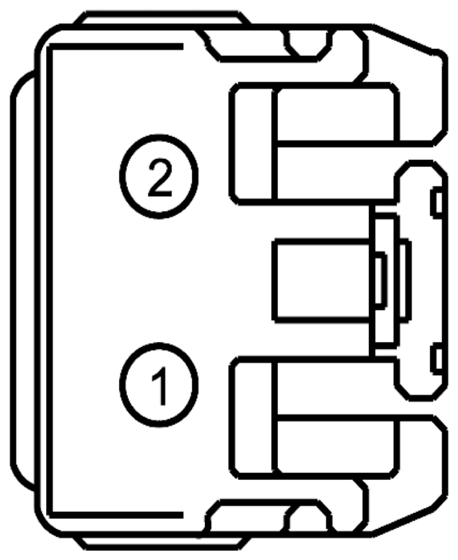

Trailer Module Connector End View (C4397A)

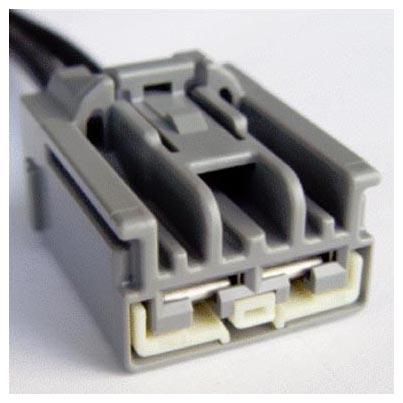

Fig 1: Identifying Trailer Module Connector (C4397A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBR11 (BU-RD)	10	FUSE OR CIRCUIT BREAKER	late production
1	*	*	Not Used	early production
2	SBR11 (BU-RD)	10	FUSE OR CIRCUIT BREAKER	early production
2	*	*	Not Used	late production

Available Pigtail Kits
Pigtail Kit Part Number WPT-236	Service Part Number: 3U2Z-14S411-PA Gauge: 10 Pin material: Tin Cavities: 2 Vehicle Uses Mirror - Vanity Module - Seat Memory Motor - Heater/AC Blower (Auxiliary) Motor - Heater/AC Blower (Front) Radio - Amplifier Resistor - Blower Motor (Front) Switch - Heater/A/C Blower (Front)
