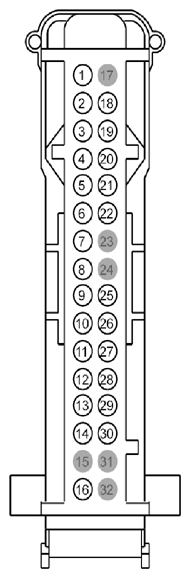

Audio Rear Control Unit (RCU) Module Connector End View (C3077)

Fig 1: Identifying Audio Rear Control Unit Module Connector (C3077)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD114 (BK-BU)	18	GROUND - CROSS CAR BEAM
2	DME09 (OG)	20	CTRL MOD. - AUDIO # FRONT	Navigator
3	RME58 (BN-BU)	22	CTRL MOD. - AUDIO # OUTPUT LEFT 2
4	VME58 (YE-VT)	22	CTRL MOD. - AUDIO # OUTPUT LEFT 2
5	VME52 (BU)	22	SWITCH - STEREO IN LEFT +	with SYNC
6	RME52 (GY-OG)	22	SWITCH - STEREO IN LEFT -	with SYNC
7	VDB07 (VT-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW
8	VDB06 (GY-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH
9	RME17 (GY)	20	CTRL MOD. - AUDIO # RADIO LEFT
10	VME17 (GN)	20	CTRL MOD. - AUDIO # RADIO LEFT
11	VME12 (BN-WH)	20	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR
12	RME12 (BN-BU)	20	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR
13	RME12 (BN-BU)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR	Expedition
13	RME12 (BN-BU)	20	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR	Navigator
14	VME12 (BN-WH)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR	Expedition
14	VME12 (BN-WH)	20	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR	Navigator
15	*	*	Not Used
16	SBP03 (BU-RD)	18	FUSE - 3 OR CIRCUIT BREAKER
17	*	*	Not Used
18	DME17 (OG)	20	CTRL MOD. - AUDIO # RADIO
19	RME59 (WH-GN)	22	CTRL MOD. - AUDIO # OUTPUT RIGHT 2
20	VME59 (YE-OG)	22	CTRL MOD. - AUDIO # OUTPUT RIGHT 2
21	VME53 (VT-GN)	22	SWITCH - STEREO IN RIGHT +	with SYNC
22	RME53 (BN-WH)	22	SWITCH - STEREO IN RIGHT -	with SYNC
23	*	*	Not Used
24	*	*	Not Used
25	RME18 (YE)	20	CTRL MOD. - AUDIO # RADIO RIGHT
26	VME18 (VT)	20	CTRL MOD. - AUDIO # RADIO RIGHT
27	VME09 (WH-GN)	20	CTRL MOD. - AUDIO # SPEAKER LEFT REAR
28	RME09 (BN-YE)	18	CTRL MOD. - AUDIO # SPEAKER LEFT REAR
29	RME09 (BN-YE)	18	CTRL MOD. - AUDIO # SPEAKER LEFT REAR	Expedition
29	RME09 (BN-YE)	20	CTRL MOD. - AUDIO # SPEAKER LEFT REAR	Navigator
30	VME09 (WH-GN)	18	CTRL MOD. - AUDIO # SPEAKER LEFT REAR	Expedition
30	VME09 (WH-GN)	20	CTRL MOD. - AUDIO # SPEAKER LEFT REAR	Navigator
31	*	*	Not Used
32	*	*	Not Used
