Removal and Installation

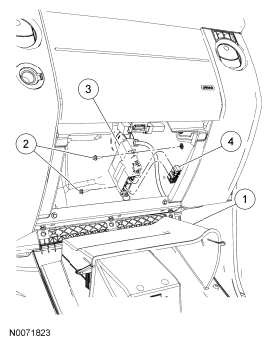

Fig 1: Identifying Glove Compartment Assembly, Control Module, Connector, Screws

G06128026

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	06010	Glove compartment assembly
2	W705314	Screws
3	7E453	4X4 control module
4	-	Connector (part of 12A581)

Lower the glove compartment assembly to gain access.
Remove the two 4X4 control module screws.
Disconnect the electrical connectors.
Remove the 4X4 control module.
To install, reverse the removal procedure.
