Door Lock Control Switch, Driver Side - With Memory: Schematic

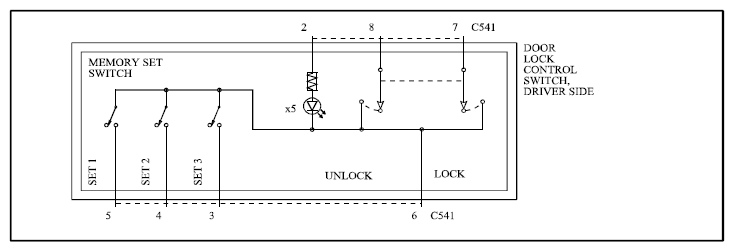

Fig 1: Door Lock Control Switch, Driver Side Schematic (With Memory)
G09231135Courtesy of FORD MOTOR CO.
